Same model may have multiple batches, images only for reference.

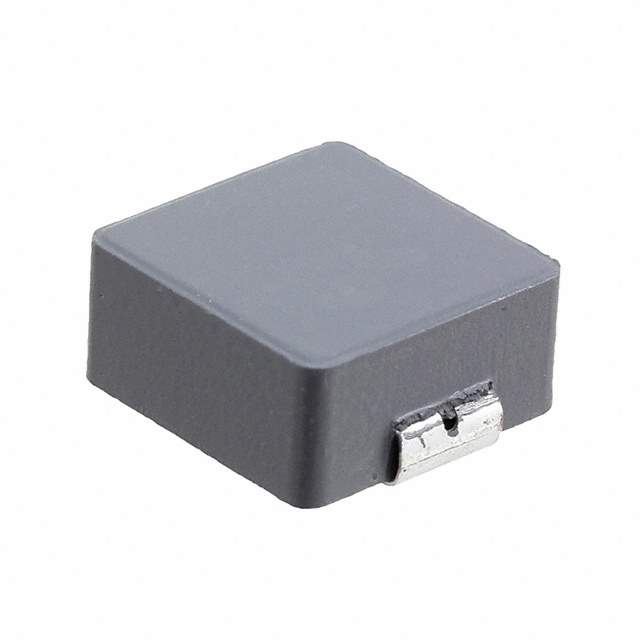

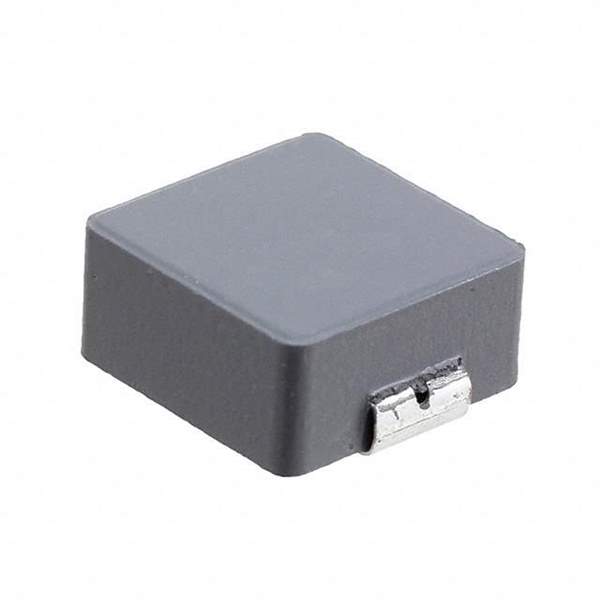

SRP1265A-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-1R0M

Part No SRP1265A-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 30A 2.3 MOHM SMD / Inductor Power Shielded Wirewound 1uH 20% 100KHz 20Q-Factor Carbonyl Powder 30A 0.0023Ohm DCR Automotive T/R
Datasheet
SRP1265A-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1265A
Packaging Reel package
Type Wirewound
Material - Core Carbonyl Powder
Inductance 1μH
Tolerance ±20%
Current Rating 30A
Current - Saturation 48A
Shielding Shielded
DC Resistance (DCR) 2.3 mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 45MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Win Source Part Number 795405-SRP1265A-1R0M
Popularity Medium
Supply and Demand Status Balance
Family Name SRP1265A
Introduction Date May 06, 2014
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SRP1265A-1R0M CAD Model

Description

The SRP1265A-1R0M is a wirewound shielded inductor manufactured by Bourns Inc.

  • Current Rating: 30A
  • Inductance: 1μH
  • Tolerance: ±20%
  • DC Resistance: 2.3 mOhm max
  • Frequency Self Resonant: 45MHz
  • Q @ Freq: 20 @ 100kHz
  • Mounting: SMD
  • Dimension: 0.531" L x 0.492" W
