Same model may have multiple batches, images only for reference.

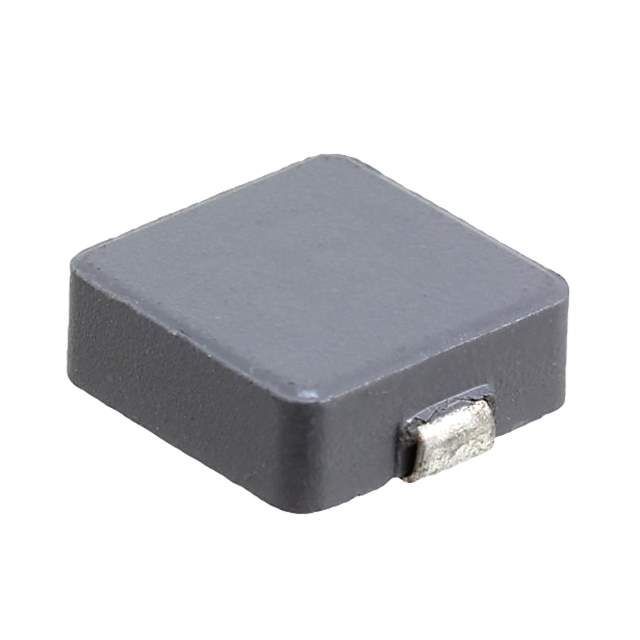

SRP1038A-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRP1038A-3R3M

Part No SRP1038A-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 11A 11.8MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 11 A 11.8mOhm Max Nonstandard
Datasheet
SRP1038A-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 11.8mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 18MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP1038A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1038A-3R3MCT,SRP1038A-3R3MDKR,SRP1038A-3R3MTR
Standard Package 500
Win Source Part Number 1095957-SRP1038A-3R3M
Ultra Librarian 3D Model Ultra Librarian SRP1038A-3R3M CAD Model

Description

The SRP1038A is a fixed inductor designed by Bourns Inc.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • Ratings: AEC-Q200
  • Current Rating: 11 A
  • Height: 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Ideal For: Applications related to electronic circuits, particularly in the field of power electronics
