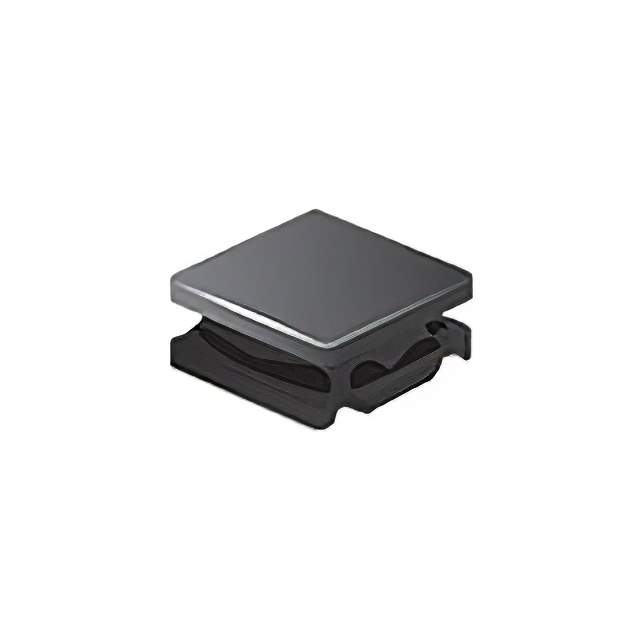

Same model may have multiple batches, images only for reference.

SRN4018-680M

Name: SRN4018-680M
Brand: Bourns Inc.
SKU: 1025401
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRN4018-680M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 68UH 500MA 1.128OHM SM / 68 µH Semi-Shielded Drum Core, Wirewound Inductor 500 mA 1.128Ohm Max Nonstandard
Datasheet	SRN4018-680M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRN4018
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±20%
Current Rating (Amps)	500 mA
Current - Saturation (Isat)	500mA
Shielding	Semi-Shielded
DC Resistance (DCR)	1.128Ohm Max
Q @ Freq	11 @ 2.52MHz
Frequency - Self Resonant	8MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)
Base Product Number	SRN4018
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRN4018-680MCT,SRN4018-680MDKR,SRN4018-680MTR,SRN4018680M
Standard Package	3,000
Win Source Part Number	1025401-SRN4018-680M
Ultra Librarian 3D Model	Ultra Librarian SRN4018-680M CAD Model

Alternative Products

Description

The Bourns Inc. 1025401-SRN4018-680M is a wirewound drum core inductor with a semi-shielded shielding.

Inductance: 68μH
Tolerance: ±20%
Package: Tape & Reel
Height: 0.071" (1.80mm)
Standard Package: 3,000
Mounting: SMD (SMT)
Material Core: Ferrite
Q @ Freq: 11 @ 2.52MHz
Self-Resonant Frequency: 8MHz
DC Resistance (DCR): 1.128Ohm Max
Temperature Range: -40°C to 125°C
Package / Case: Nonstandard
