Same model may have multiple batches, images only for reference.

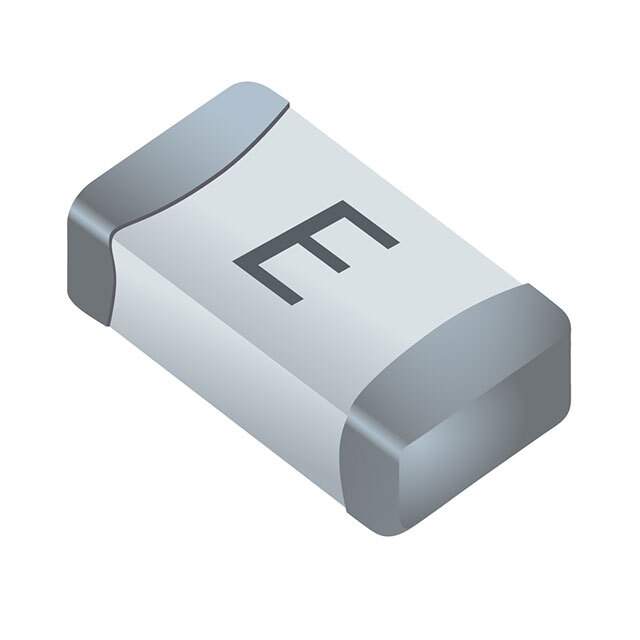

SF-1206HI250M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HI250M-2

Part No SF-1206HI250M-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 2.5A 32VDC 1206 / 2.5 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
SF-1206HI250M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HIxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - DC 32 V
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 1.19
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.065 Ohms
Base Product Number SF-1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names ,118-SF-1206HI250M-2DKR,SF-1206HI250M-2CT,118-SF-1206HI250M-2TR,118-SF-1206HI250M-2CT,SF-1206HI250M-2CT-ND,SF-1206HI250M-2DKR-ND,SF-1206HI250M-2DKR,SF-1206HI250M-2TR-ND,SF-1206HI250M-2TR
Standard Package 3,000
Win Source Part Number 1058218-SF-1206HI250M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HI250M-2 CAD Model

Description

The Bourns Inc. SinglFuse™ SF-1206HIxxxM series electronic component is a board mount (cartridge style excluded) type fuse with a voltage rating - DC of 32V and a current rating (Amps) of 2.5A.

  • Voltage Rating - DC: 32V
  • Current Rating (Amps): 2.5A
  • Breaking Capacity @ rated voltage: 50A
  • Melting I2t: 1.19
  • DC Cold Resistance: 0.065 Ohms
  • Case / Package: 1206 (3216 Metric)
  • Mounting: SMD (SMT)
  • Temperature Range - Operating: -55°C ~ 150°C
  • Standard Package: 3,000
