Same model may have multiple batches, images only for reference.

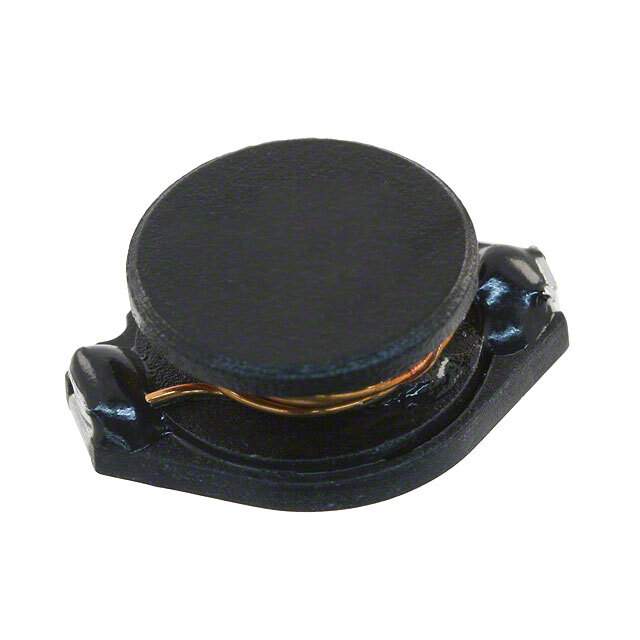

SDR1806-101KL Real Image
Same model may have multiple batches, images only for reference.

SDR1806-101KL

Part No SDR1806-101KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.7A 190 MOHM
Datasheet
SDR1806-101KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±10%
Current Rating 1.7A
Current - Saturation 3.2A
DC Resistance (DCR) 190 mOhm Max
Q @ Freq 25 @ 796kHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.272" (6.90mm)
Win Source Part Number 1095101-SDR1806-101KL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SDR1806-101KL CAD Model

Description

The Bourns Inc. 1095101-SDR1806-101KL is a medium popularity electronic component that is commonly used in the market.

  • Type: Wirewound
  • Current Rating: 1.7A
  • Inductance: 100μH
  • Height: 0.272" (6.90mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Current Saturation: 3.2A
  • Q @ Freq: 25 @ 796kHz
  • Frequency Self-Resonant: 7MHz
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 190 mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Category: Inductor, coil, and choke
  • Supply and Demand Status: Sufficient
