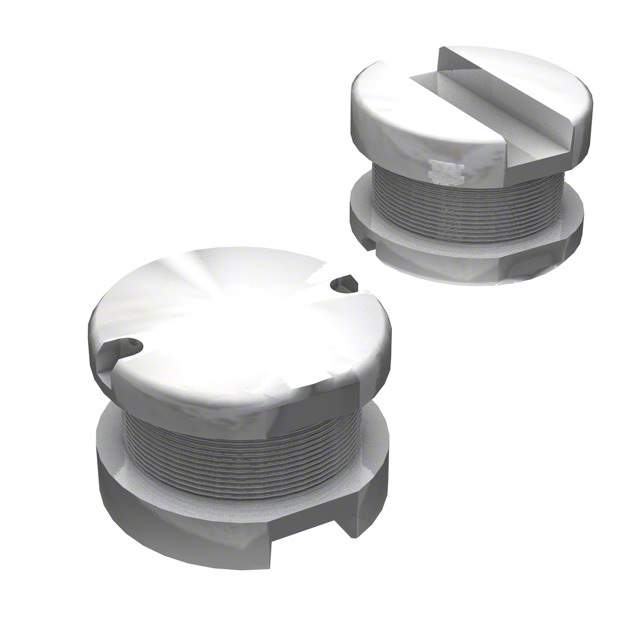

SDR0805-560KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-560KL

Part No SDR0805-560KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Fixed Inductors Inductor SMD 56uH 0.94A0.24ohms2.52MHz
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 940 mA
DC Current 940 mA
DC Resistance (DCR) 240 mΩ
Diameter 7.8 mm
Height 5.3 mm
Height - Seated (Max) 5.3086 mm
Inductance 56 µH
Inductance Tolerance 10 %
Length 7.7978 mm
Max DC Current 940 mA
Maximum Operating Temperature 125 °C
Military Standard Not
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Cut Tape
Q Factor 15
Radiation Hardening No
REACH SVHC No SVHC
Resistance 240 MΩ
RMS Current (Irms) 940 mA
RoHS Compliant
Saturation Current 1.5 A
Schedule B 8504500000
Self Resonant Frequency 9 MHz
Shielding Unshielded
Termination SMD/SMT
Test Frequency 1 kHz
Tolerance 10 %
Width 7.7978 mm
Win Source Part Number 992977-SDR0805-560KL
Categories Fixed Inductors
Manufacturer Bourns Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SDR0805-560KL CAD Model

Description

The Bourns Inc. SDR0805-560KL is a fixed inductor that is suitable for use in a variety of electronic devices.

  • Inductance: 56µH
  • Tolerance: 10%
  • Shielding: Unshielded
  • Package: Cut Tape
  • Maximum Operating Temperature: 125°C
  • DC Resistance: 240mOhm
  • Applications: Applications where high inductance and low resistance are required, such as in power supplies or filter circuits
