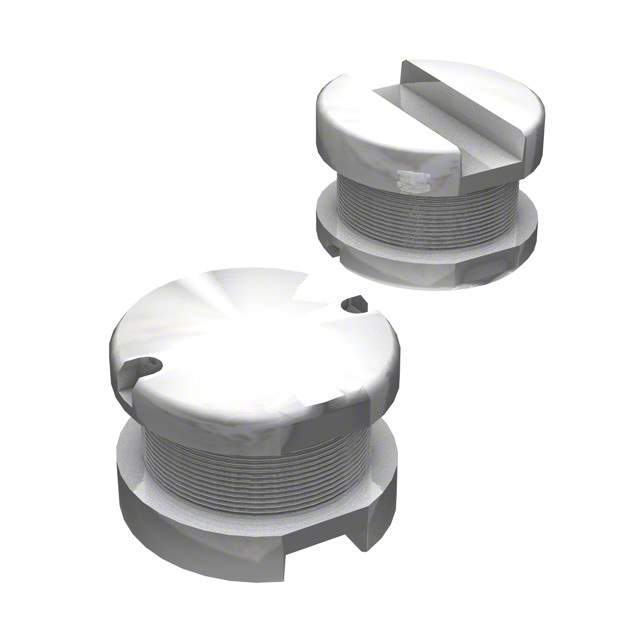

Same model may have multiple batches, images only for reference.

SDR0603-820KL

Name: SDR0603-820KL
Brand: Bourns Inc.
SKU: 1092145
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDR0603-820KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	Ind Power Wirewound 82uH 10% 1KHz 15Q-Factor Ferrite 400mA T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	Nonstandard
Composition	Wirewound
Core Material	Ferrite
Current	2.3 A
Current Rating	400 mA
DC Current	400 mA
DC Resistance (DCR)	840 mΩ
Height	3.9 mm
Height - Seated (Max)	3.9116 mm
Inductance	82 µH
Inductance Tolerance	10 %
Length	5.7912 mm
Max DC Current	400 mA
Maximum Operating Temperature	125 °C
Military Standard	Not
Min Operating Temperature	-40 °C
Mount	Surface Mount
Packaging	Cut Tape
Q Factor	15
Radiation Hardening	No
REACH SVHC	No SVHC
RMS Current (Irms)	400 mA
RoHS	Compliant
Saturation Current	480 mA
Schedule B	8504500000
Self Resonant Frequency	11 MHz
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	1 kHz
Tolerance	10 %
Width	5.7912 mm
Win Source Part Number	1092145-SDR0603-820KL
Categories	Fixed Inductors
Manufacturer	Bourns Inc.
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian SDR0603-820KL CAD Model

Alternative Products

Description

Bourns Inc. presents the SDR0603-820KL fixed inductor, which is an unshielded wirewound component.

Tolerance: 10%
Inductance: 82 µH
Core Material: Ferrite
Self-Resonant Frequency: 11 MHz
Maximum DC Current: 400 mA
Current Rating: 2.3 A
Termination: SMD/SMT
Length: 5.7912 mm
Height: 3.9116 mm
RoHS Compliant: Yes
Maximum Operating Temperature: 125 °C
Packaging: Cut Tape
Category: Fixed Inductor
