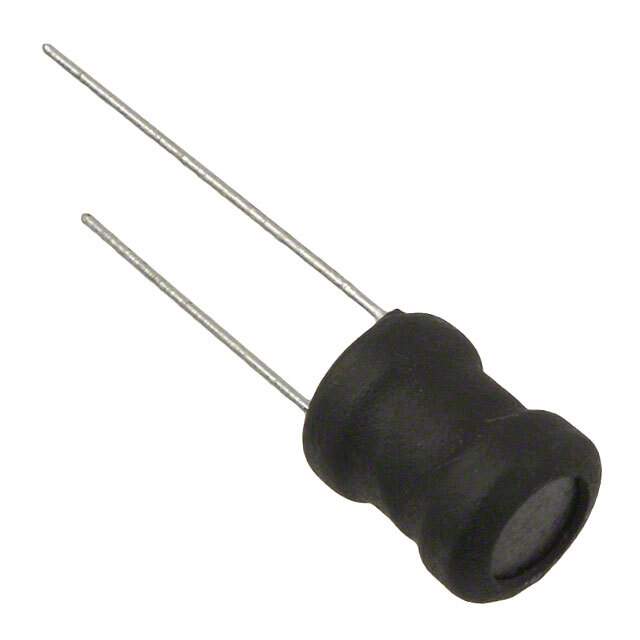

RLB0914-470KL Real Image
Same model may have multiple batches, images only for reference.

RLB0914-470KL

Part No RLB0914-470KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.56A 140 MOHM TH / 47 µH Unshielded Drum Core, Wirewound Inductor 1.56 A 140mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0914-470KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series RLB
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1.56 A
Current - Saturation (Isat) 3.2A
Shielding Unshielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512" (13.00mm)
Base Product Number RLB0914
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names RLB0914470KL,-RLB0914-470KL
Standard Package 200
Win Source Part Number 1118489-RLB0914-470KL
Ultra Librarian 3D Model Ultra Librarian RLB0914-470KL CAD Model

Description

The Bourns Inc. RLB0914-470KL is a drum core wirewound fixed inductor with an unshielded package.

  • Core Material: ferrite
  • Standard Package: 200
  • Inductance: 47 µH
  • Tolerance: ±10%
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency Self-Resonant: 6MHz
  • Mounting Type: through-hole
  • Package/Case: radial, vertical cylinder
  • DC Resistance (DCR): 140mOhm Max
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.343" Dia (8.70mm)
  • ECCN: EAR99
  • Current Rating: 1.56A
  • Inductance Frequency-Test: 2.52 MHz
  • REACH: unaffected
  • HTSUS: 8504.50.4000
  • Base Product Number: RLB0914
  • Current Saturation (Isat): 3.2A
