Same model may have multiple batches, images only for reference.

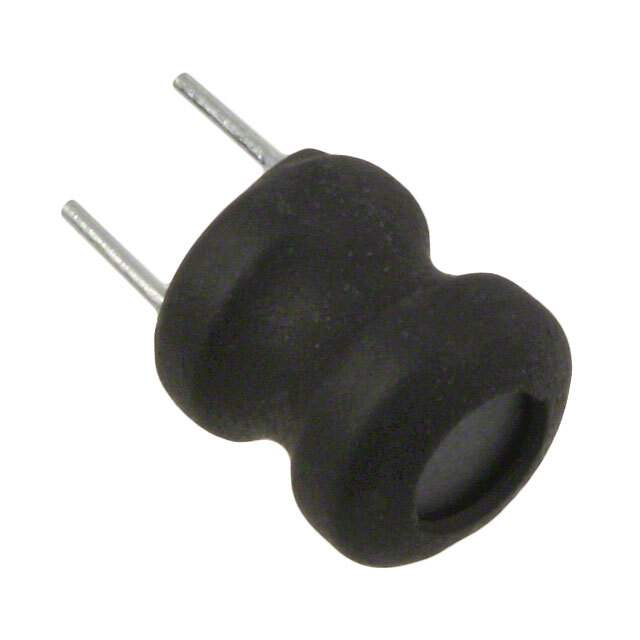

RLB0912-2R2ML Real Image
Same model may have multiple batches, images only for reference.

RLB0912-2R2ML

Part No RLB0912-2R2ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 5.3A 10 MOHM TH / 2.2 µH Unshielded Drum Core, Wirewound Inductor 5.3 A 10mOhm Max Radial, Vertical Cylinder
Datasheet
RLB0912-2R2ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series RLB
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 5.3 A
Current - Saturation (Isat) 7.5A
Shielding Unshielded
DC Resistance (DCR) 10mOhm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 63MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.433" (11.00mm)
Base Product Number RLB0912
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 200
Win Source Part Number 1117195-RLB0912-2R2ML
Ultra Librarian 3D Model Ultra Librarian RLB0912-2R2ML CAD Model

Description

The Bourns RLB0912-2R2ML is a fixed inductor designed for through-hole mounting and is manufactured by Bourns.

  • Mounting Type: Through-Hole
  • Package: Radial, Vertical Cylinder
  • Shielded: Yes
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating: 5.3A
  • DC Resistance: 10mΩ max.
  • Operating Temperature Range: -40°C to 105°C
