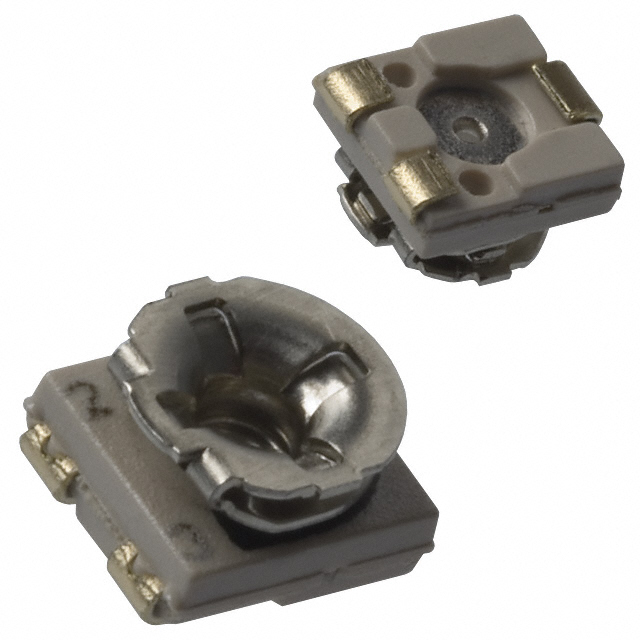

The PVZ3A202A01R00 is a trimming potentiometer manufactured by Bourns Inc. It is a component designed for precise electrical resistance adjustment within electronic circuits. Trimming potentiometers, often referred to as trimpots, are typically small, adjustable components used for calibration or fine-tuning of circuits rather than frequent user adjustments.

Applications

• Calibration of electronic sensors.
• Adjusting the gain of amplifier circuits.
• Setting reference voltages in power supplies.
• Fine-tuning the frequency of oscillators.
• Adjusting the contrast or brightness in display circuits.

Features

• Compact size for space-constrained applications.
• High adjustment accuracy.
• Stable resistance value over temperature.
• Enclosed design to protect against dust and contaminants.
• A through-hole mounting configuration for secure board attachment.
• Resistance value of 2k Ohms.

Benefits

• Enables precise calibration of electronic circuits, improving accuracy and performance.
• Allows for compensation of component tolerances, ensuring consistent circuit behavior.
• Provides a cost-effective solution for fine-tuning circuits, reducing the need for expensive precision components.
• Increases the reliability of electronic devices by allowing for adjustment to compensate for aging or environmental effects.
• Simplified manufacturing process through adjustment capabilities.

Additional Details

The PVZ3A202A01R00 trimpot features a carbon resistive element, which offers a good balance between cost and performance for general-purpose applications. It's crucial to adhere to the manufacturer's specifications regarding operating temperature and power rating to ensure optimal performance and longevity. Bourns provides detailed datasheets with specifications, recommended soldering profiles, and other helpful information for integrating this component into your design. This component is RoHS compliant.
