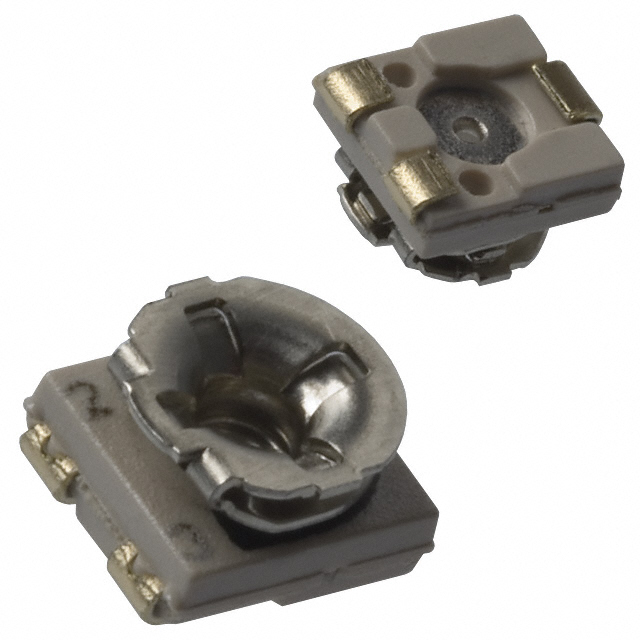

Same model may have multiple batches, images only for reference.
PVZ3A105A01R00 Bourns Inc.
Same model may have multiple batches, images only for reference.

PVZ3A105A01R00

Part No PVZ3A105A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1M OHM 0.1W SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers,Variable Resistors
Family Trimmer Potentiometers
Manufacturer Bourns Inc.
Series PVZ3
Packaging Reel
Resistance (Ohms) 1M
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting Style SMD/SMT
Termination Style J Lead
Size / Dimension Square - 0.126" x 0.122" Face x 0.073" H (3.20mm x 3.10mm x 1.85mm)
Win Source Part Number 210375-PVZ3A105A01R00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVZ3A105A01R00 CAD Model

Description

The Bourns Inc. PVZ3A105A01R00 is a reel trimmer potentiometer with J lead termination style.

  • Termination Style: J lead
  • Mounting: surface mount device (SMD)
  • Tolerance: ±30%
  • Temperature Coefficient: ±500ppm/°C
  • Power Rating: 0.1W, 1/10W
  • Resistance: 1M ohms
  • Adjustment Type: single turn
  • Resistive Material: carbon
  • Series: PVZ3
  • Dimensions: square, measuring 0.126" x 0.122" face x 0.073" H (3.20mm x 3.10mm x 1.85mm)
  • Function: used in variable resistors and potentiometers
