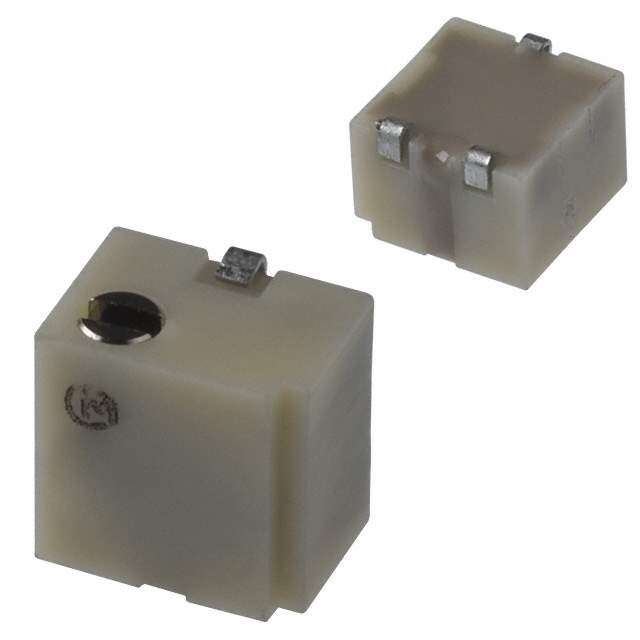

PVG5H502C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5H502C01R00

Part No PVG5H502C01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
PVG5H502C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±150ppm/°C
Number of Turns 11
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.146" Face x 0.146" H (4.80mm x 3.70mm x 3.70mm)
Win Source Part Number 210370-PVG5H502C01R00
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PVG5H502C01R00 CAD Model

Description

The Bourns Inc. 210370-PVG5H502C01R00 is a J Lead type potentiometer with a side adjustment feature.

  • Power Rating: 0.25W (1/4W)
  • Resistance: 5k ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±150ppm/°C
  • Resistive Material: Cermet
  • Shape: Rectangular
  • Dimensions: 0.189" x 0.146" Face x 0.146" H (4.80mm x 3.70mm x 3.70mm)
  • Status: Active
  • Popularity: Medium
