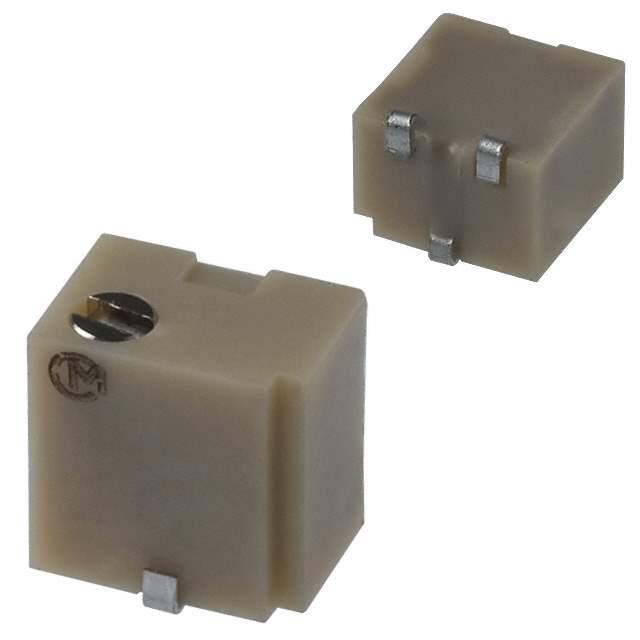

PVG5A203A01R00 Real Image1 PVG5A203A01R00 Real Image2
Same model may have multiple batches, images only for reference.
PVG5A203A01R00 Real Image1 PVG5A203A01R00 Real Image2
PVG5A203A01R00 Real Image1 PVG5A203A01R00 Real Image2
Same model may have multiple batches, images only for reference.

PVG5A203A01R00

Part No PVG5A203A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W J LEAD TOP / 20 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PVG5
Package Tape & Reel
Product Status Obsolete
Resistance 20 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number PVG5A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Standard Package 250 pcs
Win Source Part Number 1383228-PVG5A203A01R00
Ultra Librarian 3D Model Ultra Librarian PVG5A203A01R00 CAD Model

Description

The PVG5A203A01R00 is a trimmer potentiometer from Bourns Inc.

  • Series: PVG5
  • Shape: Rectangular
  • Dimensions: 0.189" x 0.138" (4.80mm x 3.50mm)
  • Resistance: 20 kOhms
  • Tolerance: ±10%
  • Mounting: Surface mount
  • Termination Style: J lead
  • Packaging: Tape and reel, 250 pieces
  • Power Rating: 0.25W (1/4W)
  • Turns: 11
  • Resistive Material: Cermet
  • Adjustment: Top adjustable
  • Temperature Coefficient: ±100ppm/°C
  • Status: Obsolete
