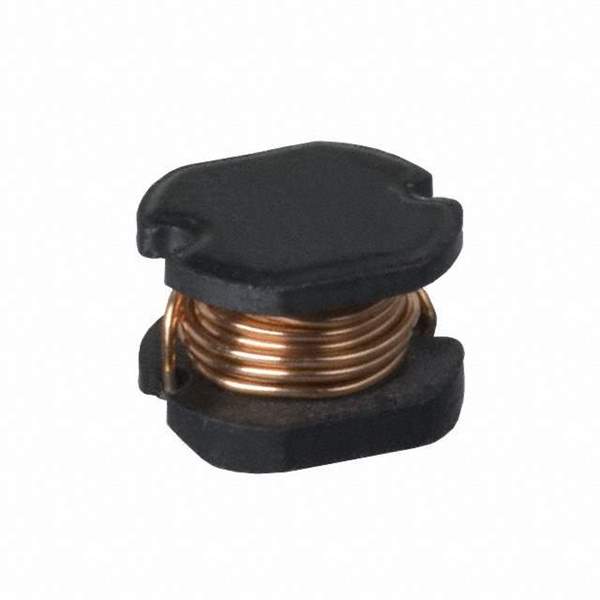

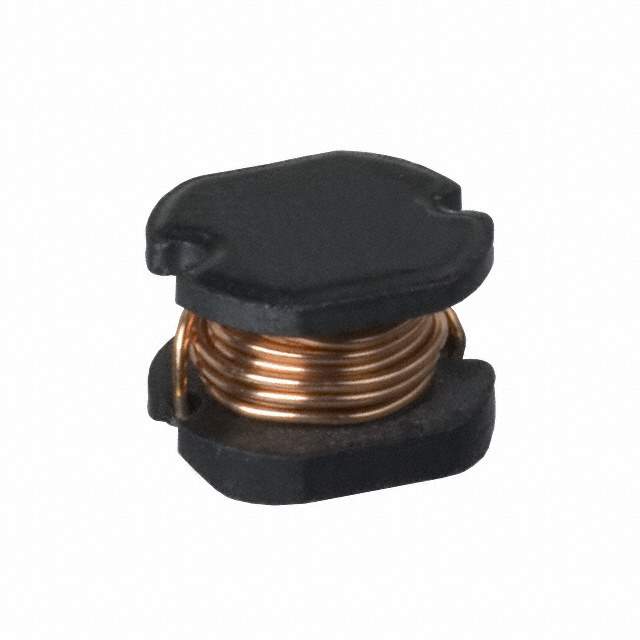

PM43-4R7M-RC Real Image
Same model may have multiple batches, images only for reference.

PM43-4R7M-RC

Part No PM43-4R7M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.7A 94 MOHM SMD
Datasheet
PM43-4R7M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.7A
Current - Saturation 2.6A
DC Resistance (DCR) 94 mOhm Max
Q @ Freq 28 @ 7.96MHz
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.138" (3.50mm)
Win Source Part Number 105307-PM43-4R7M-RC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PM43-4R7M-RC CAD Model

Description

The Bourns Inc. 105307-PM43-4R7M-RC is a wirewound inductor with an inductance of 4.7μH and a current rating of 1.7A.

  • Tolerance: ±20%
  • Material core: ferrite
  • Current saturation: 2.6A
  • Q @ Freq: 28 @ 7.96MHz
  • Operating temperature range: -40°C to 125°C
  • Suitable for use in: various inductor, coil, and choke applications.
