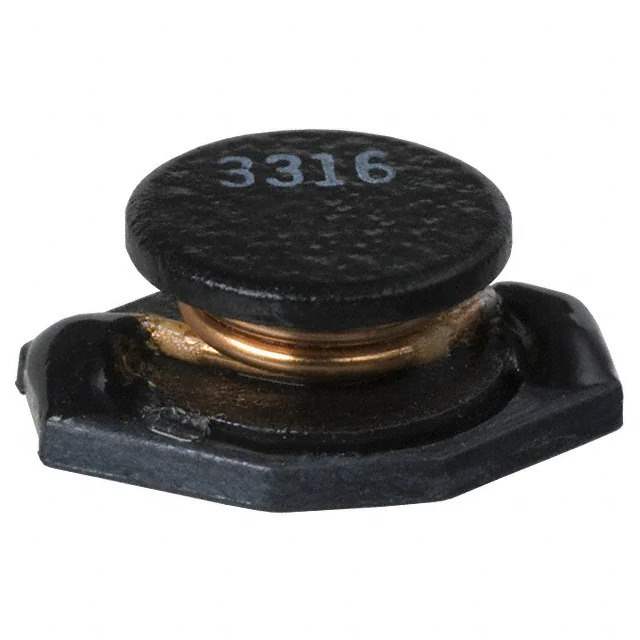

PM3316-331M-RC Real Image
Same model may have multiple batches, images only for reference.

PM3316-331M-RC

Part No PM3316-331M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330UH 550MA 1.15OHM SM
Datasheet
PM3316-331M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series PM3316
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 550 mA
Current - Saturation (Isat) 600mA
Shielding Unshielded
DC Resistance (DCR) 1.15Ohm
Q @ Freq 33 @ 50kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number PM3316
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 656101-PM3316-331M-RC
Ultra Librarian 3D Model Ultra Librarian PM3316-331M-RC CAD Model

Description

The PM3316-331M-RC is a fixed inductor with a drum core and wirewound construction.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: PM3316
  • Manufacturer: Bourns Inc.
  • Inductance: 330µH
  • Tolerance: ±20%
  • Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Seated Height: 0.209" (5.30mm)
  • Current Rating: 550mA
  • DC Resistance (DCR): 1.15Ohm
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: Active
