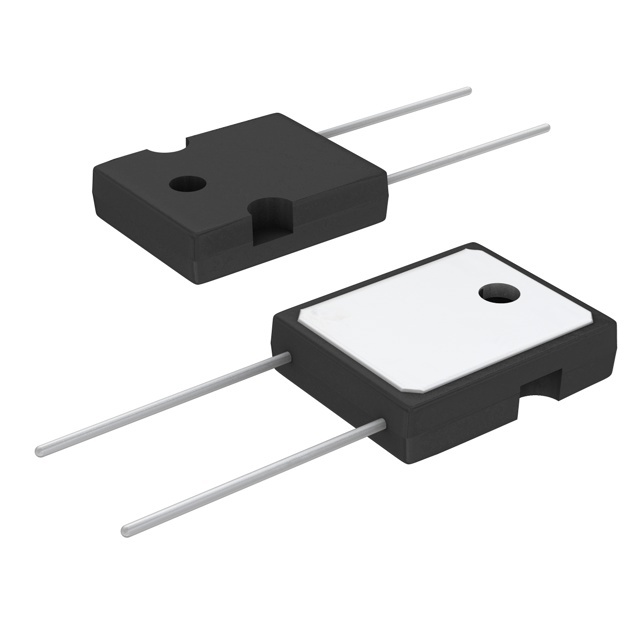

Same model may have multiple batches, images only for reference.
PF2472-100RF1 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PF2472-100RF1

Part No PF2472-100RF1
Manufacturer Bourns Inc.
Catalog Through Hole Resistors
Description RES 100 OHM 1% 100W TO247
Datasheet
PF2472-100RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Active
Resistance 100 Ohms
Tolerance ±1%
Power (Watts) 100W
Composition Thin Film
Features Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case TO-247-2
Supplier Device Package TO-247
Size / Dimension 0.630" L x 0.189" W (16.00mm x 4.80mm)
Height - Seated (Max) 0.787" (20.00mm)
Number of Terminations 2
Ultra Librarian 3D Model Ultra Librarian PF2472-100RF1 CAD Model
