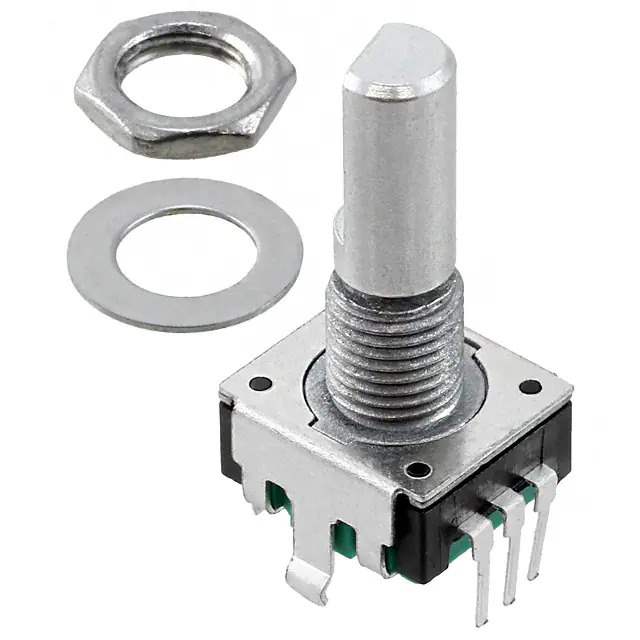

PEC11R-4220F-S0024 Real Image
Same model may have multiple batches, images only for reference.

PEC11R-4220F-S0024

Part No PEC11R-4220F-S0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR
Datasheet
PEC11R-4220F-S0024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 848528-PEC11R-4220F-S0024
California Prop 65 Warning Information
HTSUS 8543.70.4500
ECCN EAR99
REACH Status REACH Unaffected
MSL Level Not Applicable
Standard Package 75 pcs
Base Product Number PEC11R
Rotational Life (Cycles Min) 30K
Termination Style PC Pin
Orientation Vertical
Mounting Type Panel, PCB Through Hole
Built in Switch Yes
Detent Yes
Actuator Type 6mm Dia Flatted End
Pulses per Revolution 24
Output Type Quadrature (Incremental)
Encoder Type Mechanical
Programmable Not Verified
Product Status Active
Package Tray
Series PEC11R
Mfr Bourns Inc.
Category Sensors, Transducers - Encoders
Ultra Librarian 3D Model Ultra Librarian PEC11R-4220F-S0024 CAD Model

Description

The PEC11R-4220F-S0024 is a mechanical encoder from Bourns Inc. It is part of the PEC11R series, which is known for its high-quality and reliable performance.

  • Output Type: Quadrature
  • Actuator Type: 6mm dia flatted end
  • Features: Built-in switch
  • Pulses per Revolution: 24
  • Rotational Life: 30K cycles minimum
  • Mounting Type: Through-hole
