Same model may have multiple batches, images only for reference.

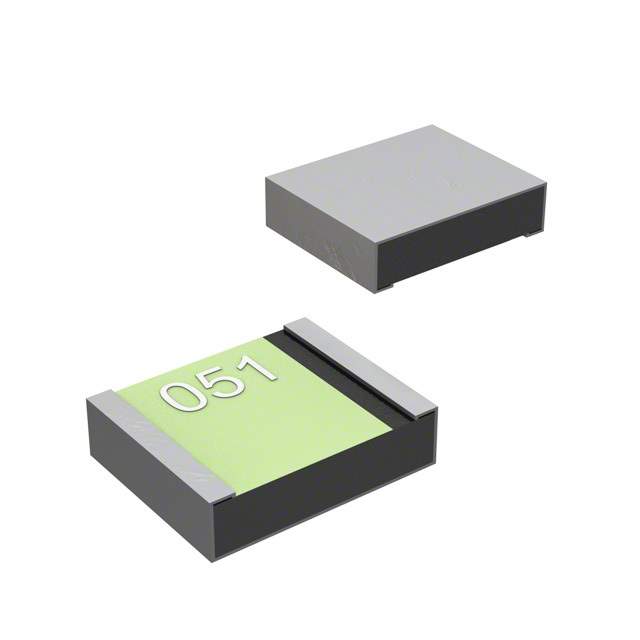

MF-USMD075-2 Real Image
Same model may have multiple batches, images only for reference.

MF-USMD075-2

Part No MF-USMD075-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .75A 6V HLD SMD
Datasheet
MF-USMD075-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 70 mOhm
Resistance - Post Trip (R1) (Max) 450 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.024" (0.62mm)
Approvals CSA, TUV, UR
Win Source Part Number 003460-MF-USMD075-2
Ultra Librarian 3D Model Ultra Librarian MF-USMD075-2 CAD Model

Description

The Bourns Inc. MF-USMD075-2 is an obsolete electronic component that offers a balanced supply and demand status.

  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 003460
  • Type: Polymeric
  • Approvals: CSA, TUV, and UR
  • Mounting Type: SMD (SMT)
  • Thickness (Max): 0.024" (0.62mm)
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Current Hold (Ih) (Max): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 100ms
