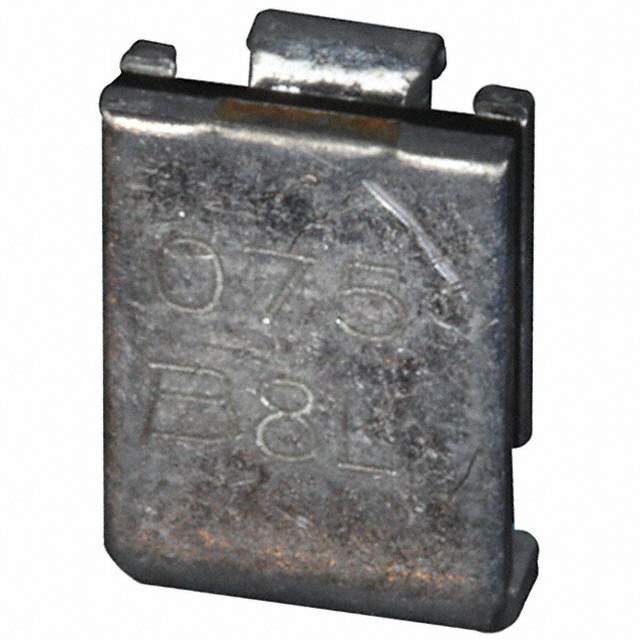

MF-SM075-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-SM075-2-99

Part No MF-SM075-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE
Datasheet
MF-SM075-2-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 003438-MF-SM075-2-99
Approvals cURus, TUV
Thickness (Max) 0.125" (3.18mm)
Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Mounting SMD (SMT)
Ratings AEC-Q200
Temperature Range - Operating -40°C to 85°C
Resistance - Post Trip (R1) (Max) 1 Ohm
Resistance - Initial (Ri) (Min) 230 mOhm
Time to Trip 300ms
Current - Trip (It) 1.5A
Current - Hold (Ih) (Max) 750mA
Current - Max 80A
Voltage - Max 30V
Type Polymeric
Status Active
Packaging Reel - TR
Manufacturer Bourns Inc.
Categories Circuit Protection
Ultra Librarian 3D Model Ultra Librarian MF-SM075-2-99 CAD Model

Description

The Bourns Inc. 003438-MF-SM075-2-99 is a polymeric circuit protection device rated for AEC-Q200.

  • Maximum Voltage: 30V
  • Maximum Current: 80A
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 300ms
  • Approvals: approved by cURus and TUV
  • Mounting: SMD (SMT) mountable
  • Thickness: 0.125" (3.18mm)
  • Operating Temperature Range: -40°C to 85°C
  • Description: suitable for use in various circuit protection applications.
