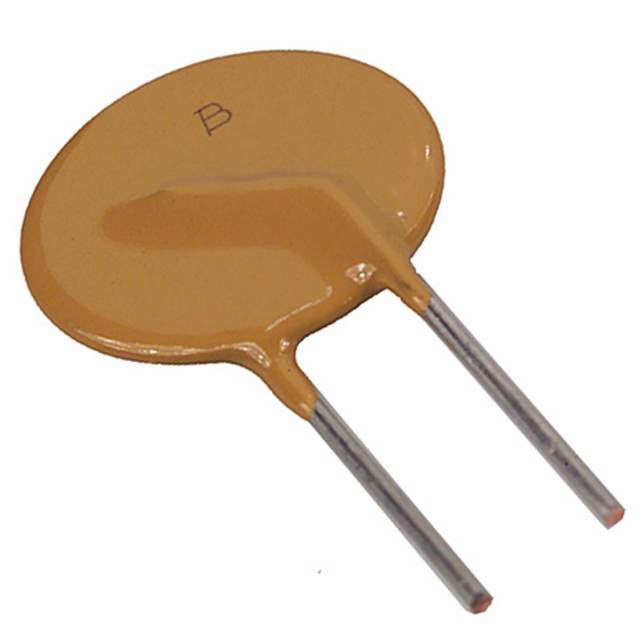

MF-RX135 Real Image
Same model may have multiple batches, images only for reference.

MF-RX135

Part No MF-RX135
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 1.35A HOLD
Datasheet
MF-RX135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 1.35A
Current - Trip (It) 2.7A
Time to Trip 9.6s
Resistance - Initial (Ri) (Min) 120 mOhm
Resistance - Post Trip (R1) (Max) 300 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.483" L x 0.122" W (12.26mm x 3.10mm)
Height - Seated (Max) 0.718" (18.26mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 1005458-MF-RX135
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MF-RX135 CAD Model

Description

The Bourns Inc. MF-RX135 is a polymeric circuit protection device with a maximum voltage of 60V and a maximum current of 40A.

  • Current Hold (Ih): 1.35A
  • Current Trip (It): 2.7A
  • Time to Trip: 9.6s
  • Resistance - Initial (Ri): 120 mOhm
  • Resistance - Post Trip (R1): 300 mOhm
  • Height Seated: 0.718 inches (18.26mm)
  • Mounting: Through-Hole
  • Lead Spacing: 0.201 inches (5.10mm)
  • Operating Temperature: -40°C to 85°C
