Same model may have multiple batches, images only for reference.

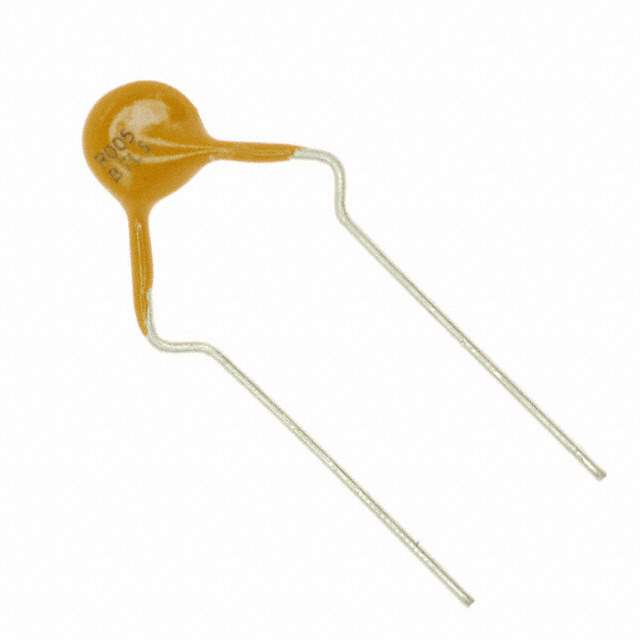

MF-R005-0 Real Image
Same model may have multiple batches, images only for reference.

MF-R005-0

Part No MF-R005-0
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 40A RADIAL
Datasheet
MF-R005-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 50mA
Current - Trip (It) 100mA
Time to Trip 5s
Resistance - Initial (Ri) (Min) 7.3 Ohm
Resistance - Post Trip (R1) (Max) 22 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.315" Dia x 0.122" W (8.00mm x 3.10mm)
Height - Seated (Max) 0.327" (8.30mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003405-MF-R005-0
Ultra Librarian 3D Model Ultra Librarian MF-R005-0 CAD Model

Description

The Bourns Inc. 235386 is a polymeric circuit protection component designed for use in electronic devices.

  • Approvals: cURus and TUV
  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 40A
  • Time to Trip: 5s
  • Popularity: Low
  • Status: Active
