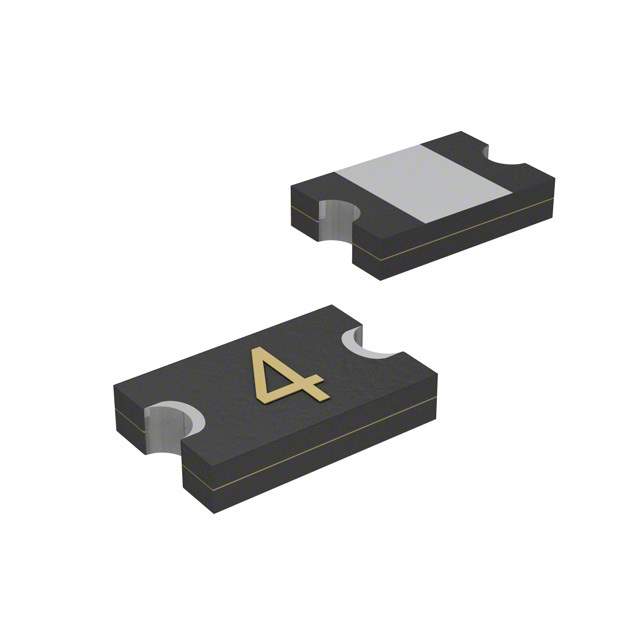

MF-PSMF010X-2 Bourns Inc. MF-PSMF010X-2 Real Image
Same model may have multiple batches, images only for reference.
MF-PSMF010X-2 Bourns Inc. MF-PSMF010X-2 Real Image
MF-PSMF010X-2 Bourns Inc. MF-PSMF010X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-PSMF010X-2

Part No MF-PSMF010X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE SMD 0805
Datasheet
MF-PSMF010X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 300mA
Time to Trip 1.5s
Resistance - Initial (Ri) (Min) 1 Ohm
Resistance - Post Trip (R1) (Max) 7.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003399-MF-PSMF010X-2
Family Name MF-PSMF
Introduction Date January 10, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Automotive, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian MF-PSMF010X-2 CAD Model

Description

The MF-PSMF010X-2 is a polymeric type of fuse manufactured by Bourns Inc.

  • Voltage Rating: 15V
  • Maximum Current: 40A
  • Current Hold (Ih): 100mA
  • Current Trip (It): 300mA
  • Time to Trip: 1.5s
  • Thickness: 0.033" (0.85mm)
  • Mounting: SMD (SMT)
  • Designed for: use in circuit protection
  • Approvals: cURus and TUV approved
  • Dimension: 0.085" L x 0.053" W (2.15mm x 1.35mm)
  • Initial Resistance (Ri): 1 Ohm
  • Post-Trip Resistance (R1): 7.5 Ohm
  • Ideal for use in: computers and computer peripherals, automotive, and consumer electronics
