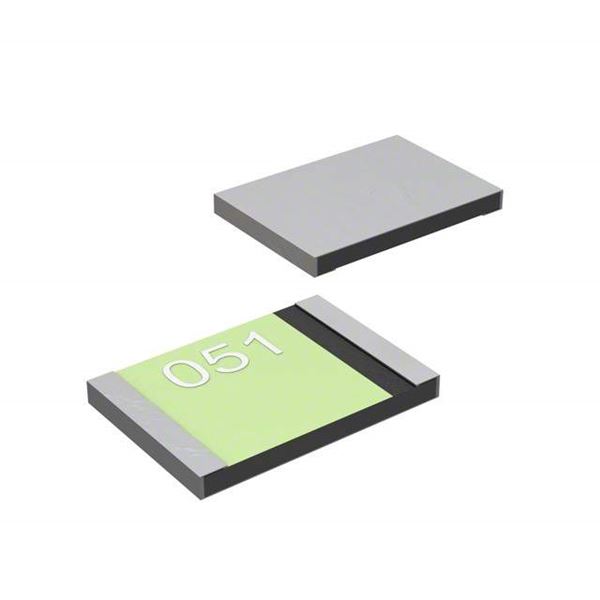

MF-MSMD014-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMD014-2

Part No MF-MSMD014-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE .14A HOLD SMD
Datasheet
MF-MSMD014-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 140mA
Current - Trip (It) 340mA
Time to Trip 150ms
Resistance - Initial (Ri) (Min) 400 mOhm
Resistance - Post Trip (R1) (Max) 6.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.027" W (4.55mm x 0.68mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 099003-MF-MSMD014-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD014-2 CAD Model

Description

Bourns Inc. presents the MF-MSMD014-2, a polymeric circuit protection component that is ideal for circuit protection applications.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Current Hold (Ih): 140mA
  • Current Trip (It): 340mA
  • Time to Trip: 150ms
  • Mounting: SMD (SMT) technology
  • Packaging: reel - TR
  • Thickness: 0.134 inches (3.41mm)
  • Dimension: 0.179 inches L x 0.027 inches W (4.55mm x 0.68mm)
  • Initial Resistance (Ri): 400 mOhm
  • Post-Trip Resistance (R1): 6.5 Ohm
  • Status: obsolete (EOL)
