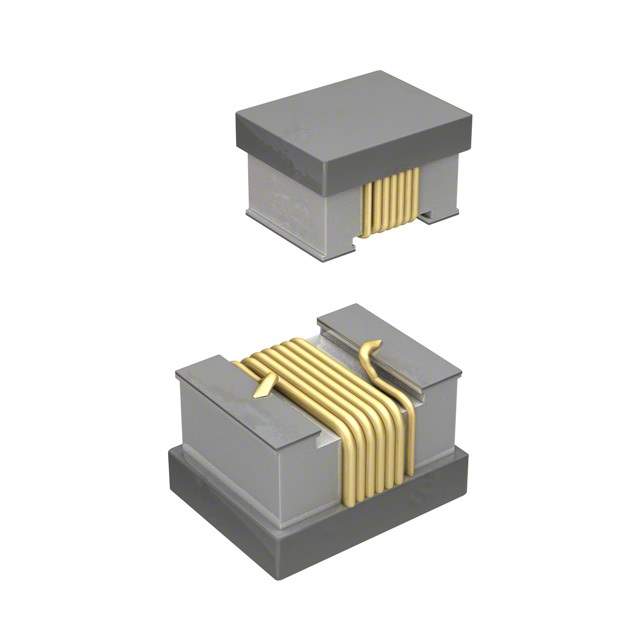

Same model may have multiple batches, images only for reference.

CW252016-R15J

Name: CW252016-R15J
Brand: Bourns Inc.
SKU: 916193
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CW252016-R15J
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 150NH 500MA 700MOHM SM
Datasheet	CW252016-R15J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors
Estimated Pruduction Lead Time	30 Weeks
Features	Unshielded Wirewound Inductor 700mOhm Max 1008 (2520 Metric)
Manufacturer	Bourns Inc.
Series	CW252016
Package	Reel - TR
Operating Temperature Range	-40°C ~ 125°C
Mounting	Surface Mount
Package	1008 (2520 Metric)
Case / Package	1008 (2520 Metric)
Family Name	CW252016
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	CW252016-R15JTR, CW252016R15J, CW252016-R15JDKR, CW252016-R15J-ND, CW252016-R15JCT
Quantity per package	2000
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	916193-CW252016-R15J
Ultra Librarian 3D Model	Ultra Librarian CW252016-R15J CAD Model

Alternative Products

Description

The Bourns Inc. CW252016-R15J wirewound inductor is a versatile and high-performance component suitable for a range of applications.

Inductance: 150nH
Current Rating: 700mA
Design: Unshielded
Package / Case: 1008 (2520 Metric)
Dimensions: 1008 (2520 Metric)
Mounting Style: Surface Mount
Packaging: Reel - TR
Standard Package: 2,000 units
