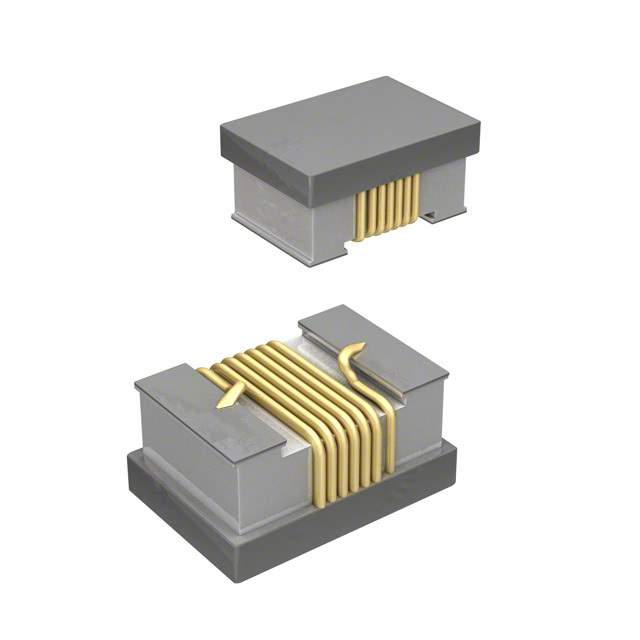

CW201212-R82J Real Image
Same model may have multiple batches, images only for reference.

CW201212-R82J

Part No CW201212-R82J
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 820NH 180MA 2.3 OHM
Datasheet
CW201212-R82J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 820nH
Tolerance ±5%
Current Rating 180mA
DC Resistance (DCR) 2.3 Ohm
Q @ Freq 23 @ 50MHz
Frequency - Self Resonant 230MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 25MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 203006-CW201212-R82J
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CW201212-R82J CAD Model

Description

Features and Benefits:

  • Inductor with an inductance of 0.82 μH.
  • Low DC resistance for minimal power loss.
  • Optimized for high-frequency operations.
  • Compact footprint suitable for high-density boards.

Applications:

  • DC-DC converters.
  • RF transceivers.
  • Power management circuits.
  • Switching regulators.

Additional Details:

The CW201212-R82J offers high efficiency in electromagnetic interference (EMI) suppression and transient response, making it an excellent choice for power electronics and RF designs.
