Same model may have multiple batches, images only for reference.

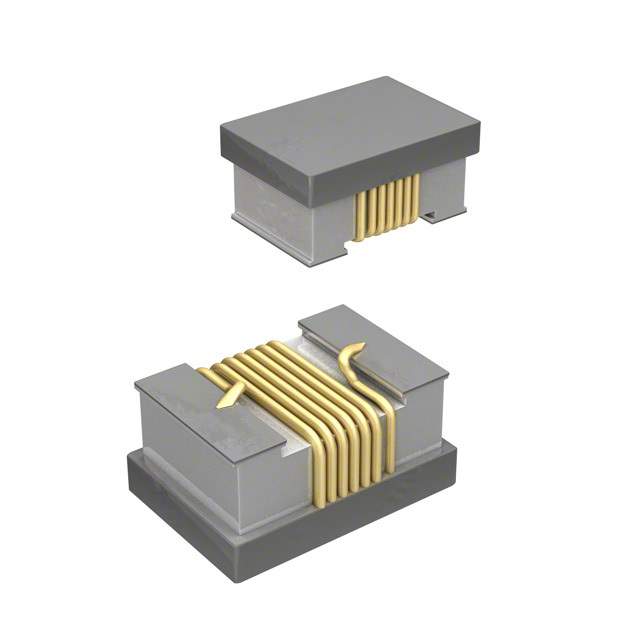

CW201212-56NJ Real Image
Same model may have multiple batches, images only for reference.

CW201212-56NJ

Part No CW201212-56NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56NH 500MA 250MOHM SMD / 56 nH Unshielded Drum Core, Wirewound Inductor 500 mA 250mOhm 0805 (2012 Metric)
Datasheet
CW201212-56NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CW201212
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 56 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 250mOhm
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 1.6GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number CW201212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 986969-CW201212-56NJ
Ultra Librarian 3D Model Ultra Librarian CW201212-56NJ CAD Model

Description

The Bourns Inc. CW201212-56NJ is a fixed inductor designed for use in surface mount applications.

  • Type: Fixed Inductor
  • Mounting: Surface Mount
  • Core Type: Drum Core
  • Winding Type: Wirewound
  • Shielding: Unshielded
  • Inductance: 56 nH
  • Tolerance: ±5%
  • Maximum Current Rating: 500mA
  • Temperature Range: -40°C to 125°C
  • Package: 0805 (2012 Metric)
  • Packaging: Tape and Reel
  • Failure Rate: -
  • Series: CW201212
  • Frequency Self-Resonant: 1.6GHz
  • Q @ Freq: 60 @ 500MHz
