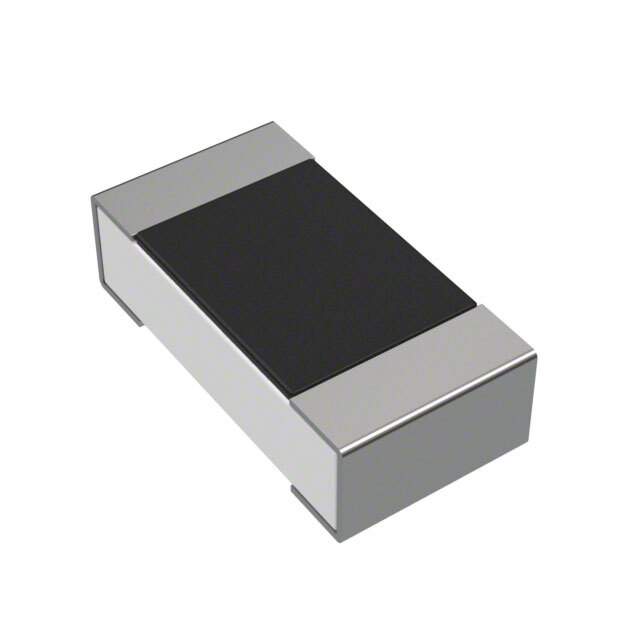

Same model may have multiple batches, images only for reference.

CMP0603AFX-1003ELF

Name: CMP0603AFX-1003ELF
Brand: Bourns Inc.
SKU: 1124601
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CMP0603AFX-1003ELF
Manufacturer	Bourns Inc.
Catalog	Chip Resistor - Surface Mount
Description	RESHIGHPOWERA 0603 100K 1% 1/4W / 100 kOhms ±1% 0.25W, 1/4W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film
Datasheet	CMP0603AFX-1003ELF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Bourns Inc.
Series	CMP-A
Package	Tape & Reel
Resistance	100 kOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Ratings	AEC-Q200
Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.022" (0.55mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	118-CMP0603AFX-1003ELFTR,118-CMP0603AFX-1003ELFCT,118-CMP0603AFX-1003ELFDKR
Standard Package	5,000
Win Source Part Number	1124601-CMP0603AFX-1003ELF
Ultra Librarian 3D Model	Ultra Librarian CMP0603AFX-1003ELF CAD Model

Description

The CMP0603AFX-1003ELF chip resistor is a high-quality surface mount resistor that is perfect for a wide range of applications.

Features: Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Height: 0.022" (0.55mm)
Tolerance: ±1%
Power Rating: 0.25W, 1/4W
Composition: Thick Film
Number of Terminations: 2
Resistance: 100 kOhms
Package/Case: 0603 (1608 Metric)
Operating Temperature: -55°C to 155°C
Supplier: Bourns Inc.
