Same model may have multiple batches, images only for reference.

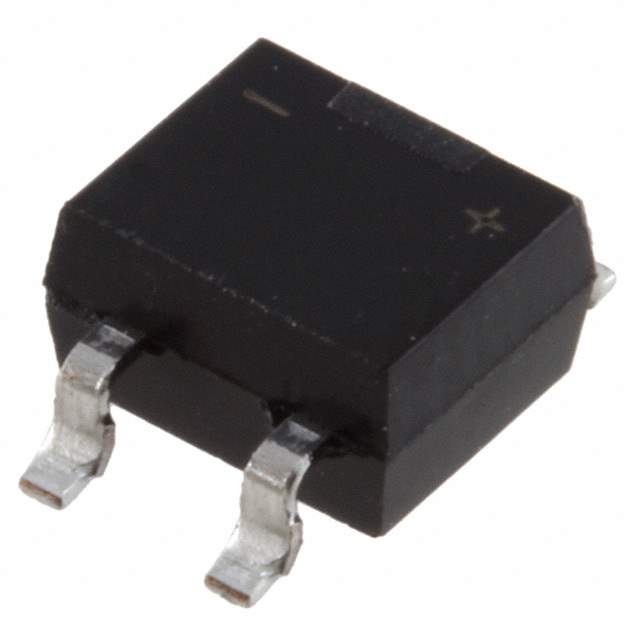

CDNBS04-B08200 Real Image
Same model may have multiple batches, images only for reference.

CDNBS04-B08200

Part No CDNBS04-B08200
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description DIODE BRIDGE RECTIFIER 200V NBS0
Datasheet
CDNBS04-B08200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.15V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package NBS04
Win Source Part Number 1028835-CDNBS04-B08200
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking
Ultra Librarian 3D Model Ultra Librarian CDNBS04-B08200 CAD Model

Description

The CDNBS04-B08200 is a single-phase standard diode that is designed for use in a wide range of applications, including communications and networking by Bourns.

  • Average Rectified Current: 800mA
  • Peak Reverse Voltage: 200V
  • Packaging: Reel
  • Mounting: Surface Mount
  • Supply and Demand: Sufficient
