Same model may have multiple batches, images only for reference.

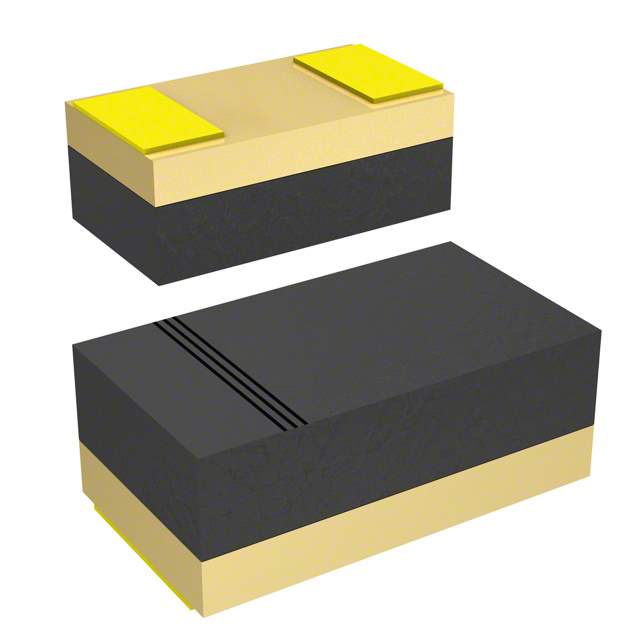

CD0603-T05C Real Image
Same model may have multiple batches, images only for reference.

CD0603-T05C

Part No CD0603-T05C
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 0603 / 15V Clamp 5.1A (8/20µs) Ipp Tvs Diode Surface Mount 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Package Tape & Reel
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 5.1V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5.1A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Base Product Number CD0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names CD0603T05C,CD0603-T05CCT,CD0603-T05CTR,CD0603-T05CDKR
Standard Package 4,000
Win Source Part Number 1161030-CD0603-T05C
Ultra Librarian 3D Model Ultra Librarian CD0603-T05C CAD Model

Description

The CD0603-T05C is a Zener type TVS - Diode electronic component manufactured by Bourns Inc.

  • Packaging: Tape & Reel
  • Standard Package: 4,000
  • Channel Configuration: Bidirectional
  • Voltage - Reverse Standoff (Typ): 5V (Max)
  • Voltage - Breakdown (Min): 5.1V
  • Voltage - Clamping (Max) @ Ipp: 15V
  • Capacitance: 15pF @ 1MHz
  • Current - Peak Pulse (10/1000µs): 5.1A (8/20µs)
  • Product Status: Obsolete
