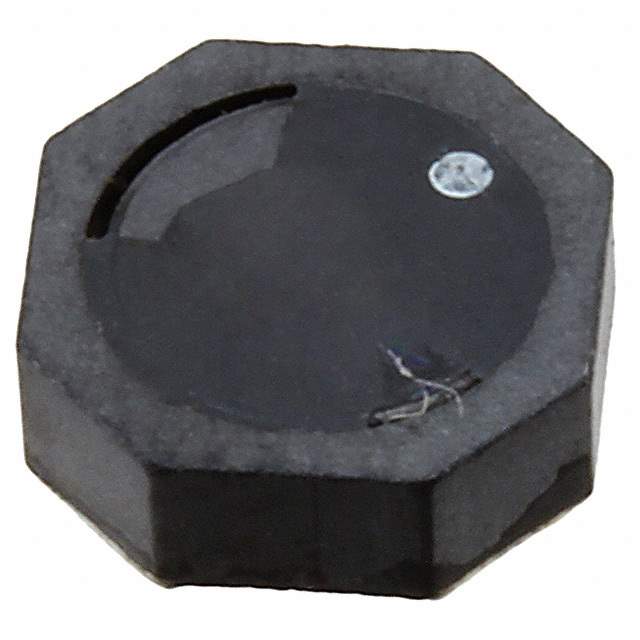

SRU6025-151Y Real Image
Same model may have multiple batches, images only for reference.

SRU6025-151Y

Part No SRU6025-151Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU6025-151Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU6025
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±30%
Current Rating (Amps) 540 mA
Current - Saturation (Isat) 280mA
Shielding Shielded
DC Resistance (DCR) 770mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.244" W (6.50mm x 6.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SRU6025
Other Names SRU6025-151Y,SRU6025-151YCT,SRU6025-151YTR,SRU6025-151YDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273010-SRU6025-151Y
Ultra Librarian 3D Model Ultra Librarian SRU6025-151Y CAD Model

Description

The 1273010-SRU6025-151Y is a drum core, wirewound fixed inductor manufactured by Bourns Inc.

  • Category: Inductors, Coils, Chokes
  • Popularity: Medium
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • Current Rating: 540 mA
  • Inductance Frequency for Test: 100 kHz
  • Package: Tape and reel
  • Standard Package: 600
  • Height When Seated: 0.110 inches
  • Dimension: 0.256 inches x 0.244 inches (6.50mm x 6.20mm)
  • Tolerance: ±30%
  • Material of the Core: Ferrite
  • Q @ Freq: 30 @ 2.52MHz
  • Frequency for Self-Resonant: 5MHz
  • DC Resistance: 770mOhm Max
