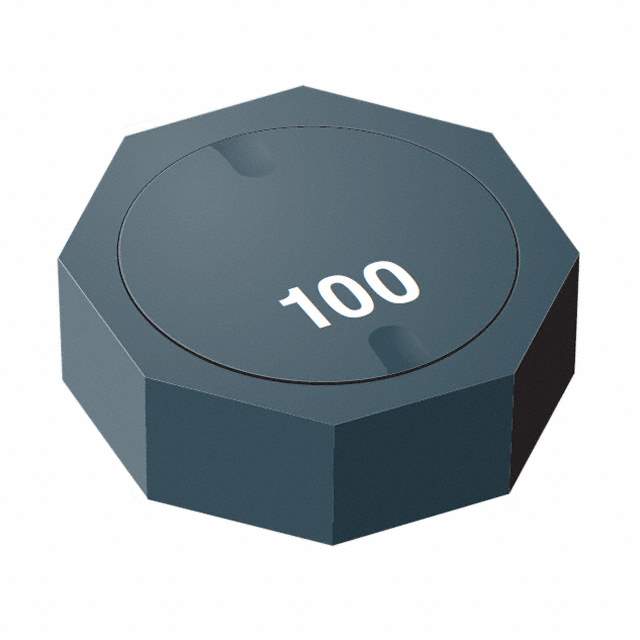

SRU1038A-470Y Real Image
Same model may have multiple batches, images only for reference.

SRU1038A-470Y

Part No SRU1038A-470Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1038A-470Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1038A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±30%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 8MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.161" (4.10mm)
Base Product Number SRU1038A
Other Names SRU1038A-470YDKR,SRU1038A-470YCT,SRU1038A-470Y,SRU1038A-470YTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273145-SRU1038A-470Y
Ultra Librarian 3D Model Ultra Librarian SRU1038A-470Y CAD Model

Description

The SRU1038A-470Y inductor is a drum core, wirewound type of inductor.

  • Manufacturer: Bourns Inc.
  • Shielding: Shielded
  • Inductance: 47 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 2.52MHz
  • AEC-Q200: Rated
  • Operating Temperature: -40°C to 125°C
  • DC Resistance (DCR): 160mOhm Max
  • Current Rating: 1.65 A
  • Inductance Frequency-Test: 100 kHz
  • Frequency-Self Resonant: 8MHz
  • Package/Case: Non-standard
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
