SRU1028A-151Y

Part No SRU1028A-151Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±30%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 680mOhm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
Base Product Number SRU1028A
Other Names SRU1028A-151YDKR,SRU1028A-151YCT,SRU1028A-151YTR,SRU1028A-151Y
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273161-SRU1028A-151Y
Ultra Librarian 3D Model Ultra Librarian SRU1028A-151Y CAD Model

Description

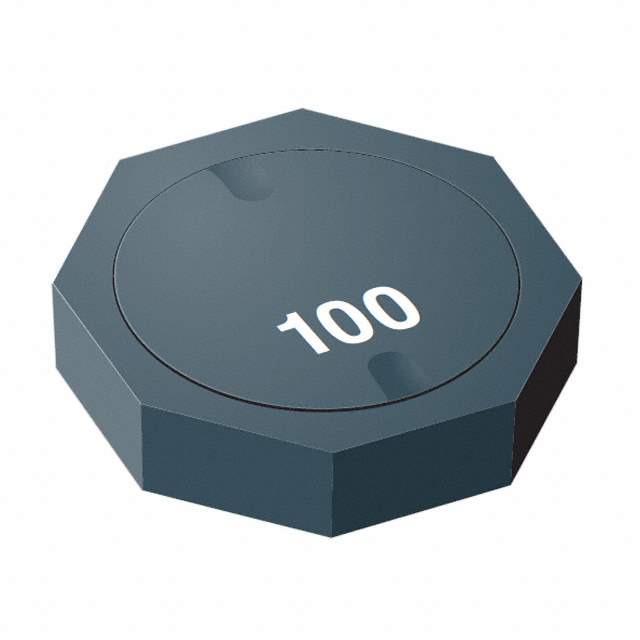

The SRU1028A-151Y is a shielded drum core, wirewound inductor from Bourns Inc.

  • Inductance: 150 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 18 @ 796kHz
  • Frequency Self-Resonant: 5MHz
  • DC Resistance: 680mOhm Max
  • Current Rating: 650mA
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Package: Tape & reel
  • Package/Case: Nonstandard
  • AEC-Q200 Rating: Yes
