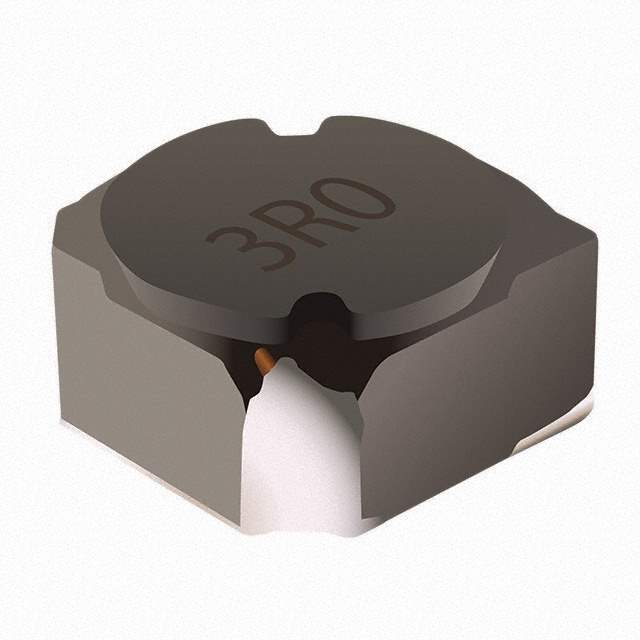

SRR6040A-101M Real Image
Same model may have multiple batches, images only for reference.

SRR6040A-101M

Part No SRR6040A-101M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR6040A-101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR6040A
Package Tape & Reel
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 570mA
Shielding Shielded
DC Resistance (DCR) 345mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRR6040A
Other Names SRR6040A-101MTR,SRR6040A-101MDKR,SRR6040A-101MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273221-SRR6040A-101M
Ultra Librarian 3D Model Ultra Librarian SRR6040A-101M CAD Model

Description

The SRR6040A-101M is a shielded fixed inductor from Bourns Inc.

  • Inductance: 100 µH
  • Tolerance: ±20%
  • DC Resistance: 345mOhm Max
  • Maximum Current Rating: 650mA
  • Package: Non-standard, corner terminals
  • Mounting Technology: SMD (SMT)
  • AEC-Q200: Yes
  • Temperature Range: -40°C to 125°C
  • Height: 0.157 inches (4.00mm)
  • Material: Ferrite
  • Packaging: Tape and reel
  • Standard Package: 1,000
