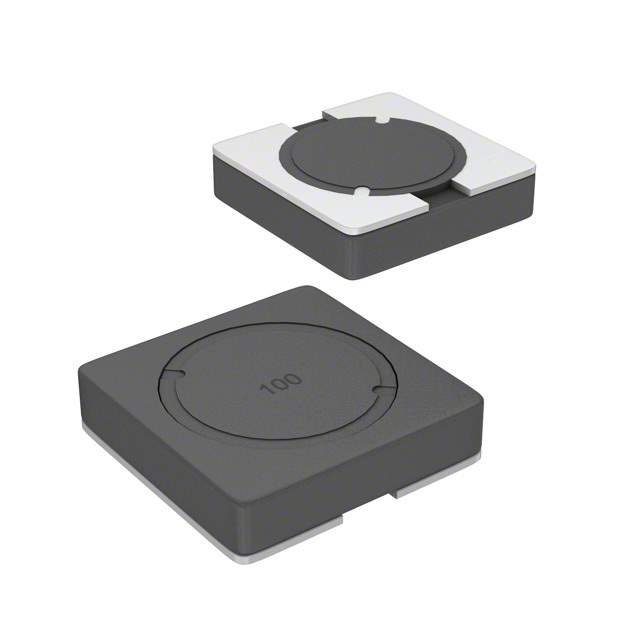

Same model may have multiple batches, images only for reference.

SRR4011-680YL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR4011-680YL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR4011-680YL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR4011
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	350 mA
Current - Saturation (Isat)	320mA
Shielding	Shielded
DC Resistance (DCR)	1.8Ohm Max
Q @ Freq	12 @ 2.52MHz
Frequency - Self Resonant	14MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.051" (1.30mm)
Base Product Number	SRR4011
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273331-SRR4011-680YL
Ultra Librarian 3D Model	Ultra Librarian SRR4011-680YL CAD Model

Alternative Products

Description

The SRR4011-680YL is a fixed inductor from Bourns Inc.

Type: Drum core, wirewound
Shielding: Shielded
Inductance: 68 µH
Tolerance: ±30%
Current Rating: 350 mA
DC Resistance (DCR): 1.8Ohm Max
Series: SRR4011
Package: Tape and reel
Height: 0.051" (1.30mm)
Dimension: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Package Type: Nonstandard
Operating Temperature Range: -40°C to 125°C
ECCN: EAR99 compliant
Failure Rate: 65%
REACH: Unaffected
