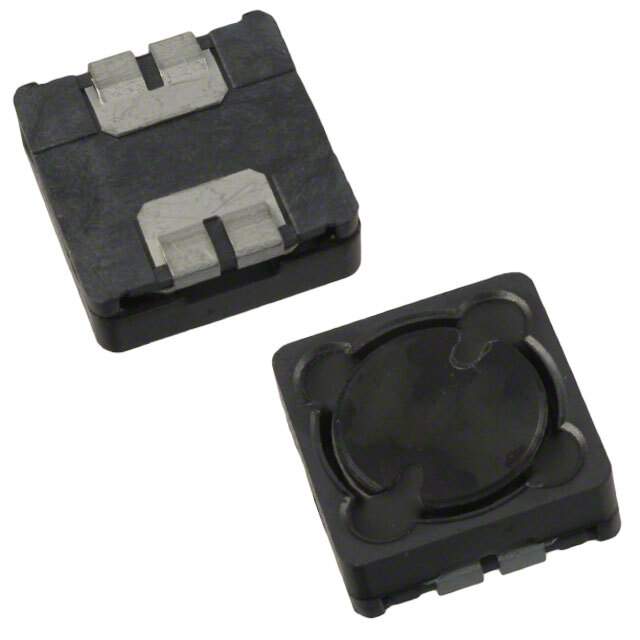

Same model may have multiple batches, images only for reference.

SRR1205-181KL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1205-181KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1205-181KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1205
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	180 µH
Tolerance	±10%
Current Rating (Amps)	700 mA
Current - Saturation (Isat)	1.4A
Shielding	Shielded
DC Resistance (DCR)	750mOhm Max
Q @ Freq	9 @ 796kHz
Frequency - Self Resonant	3.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)	0.217" (5.50mm)
Base Product Number	SRR1205
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273541-SRR1205-181KL
Ultra Librarian 3D Model	Ultra Librarian SRR1205-181KL CAD Model

Alternative Products

Description

The Bourns Inc. SRR1205-181KL is a drum core, wirewound inductor that is designed to be used in various applications, including automotive, industrial, and consumer electronics.

Inductance: 180 µH
Tolerance: ±10%
Applications: Automotive, Industrial, Consumer Electronics
