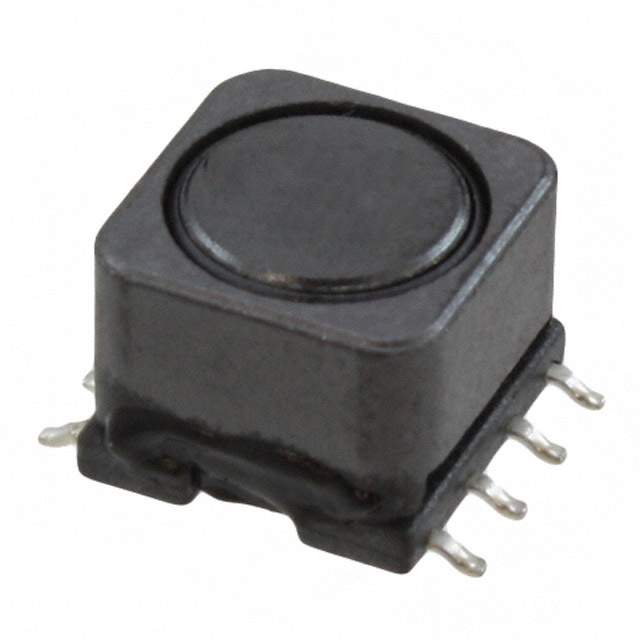

SRR0908-120ML

Part No SRR0908-120ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0908
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.307" (7.80mm)
Base Product Number SRR0908
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273624-SRR0908-120ML
Ultra Librarian 3D Model Ultra Librarian SRR0908-120ML CAD Model

Description

The SRR0908-120ML is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: Shielding feature
  • Tolerance: ±20%
  • Inductance: 12 μH
  • DC Resistance (DCR): 50mOhm max
  • Height: 0.307" (7.80mm)
  • Dimension: 0.394" L x 0.374" W (10.00mm x 9.50mm)
  • Q @ Freq: 40 @ 2.52MHz
  • Frequency - Self-Resonant: 11MHz
  • Package/Case: 8-SMD, Gull Wing
  • Temperature Range: -40°C ~ 125°C
  • Applications: Inductors, coils, and chokes
