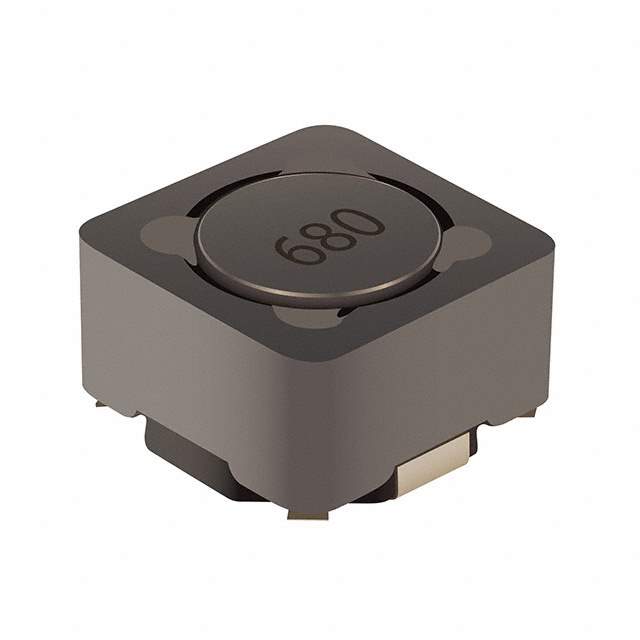

SRR0745A-681M Real Image
Same model may have multiple batches, images only for reference.

SRR0745A-681M

Part No SRR0745A-681M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0745A-681M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0745A
Package Tape & Reel
Material - Core Ferrite
Inductance 680 µH
Tolerance ±20%
Current Rating (Amps) 240 mA
Current - Saturation (Isat) 280mA
Shielding Shielded
DC Resistance (DCR) 2.8Ohm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0745A
Other Names SRR0745A-681MCT,SRR0745A-681MTR,SRR0745A-681MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273716-SRR0745A-681M
Ultra Librarian 3D Model Ultra Librarian SRR0745A-681M CAD Model

Description

The SRR0745A series from Bourns Inc. is a shielded fixed inductor designed for use in various applications such as filtering, power supplies, and DC/DC converters.

  • Core Type: Drum core type
  • Core Material: Ferrite core material
  • Inductance: 680 µH
  • Tolerance: ±20%
  • DC Resistance: 2.8Ohm max
  • Current Rating (amps): 240 mA
  • Standard Package: 1,000
  • Package/Case: Non-standard
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.287" L x 0.287" W (7.30mm x 7.30mm)
