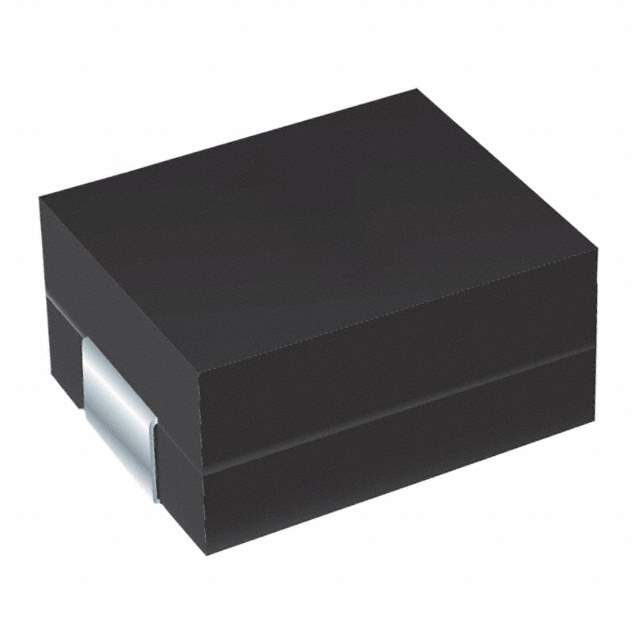

SRP8040-R22Y Real Image
Same model may have multiple batches, images only for reference.

SRP8040-R22Y

Part No SRP8040-R22Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP8040-R22Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP8040
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 nH
Tolerance ±30%
Current Rating (Amps) 25 A
Shielding Shielded
DC Resistance (DCR) 650mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.323" L x 0.240" W (8.20mm x 6.10mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRP8040
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273768-SRP8040-R22Y
Ultra Librarian 3D Model Ultra Librarian SRP8040-R22Y CAD Model

Description

The SRP8040 series inductor is a shielded drum core, wirewound type component.

  • Inductance: 220 nH
  • Tolerance: ±30%
  • Height: 0.177" (4.50mm)
  • Maximum DC Resistance (DCR): 650mOhm
  • Core Material: Ferrite
  • Q @ Freq: No specification
  • Frequency Self-Resonant: No specification
  • Package/Case: Non-standard
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: SMD (SMT)
  • Current Rating: 25 A
  • ECCN: EAR99
  • REACH Status: Unaffected
  • Package: Tape & Reel (TR)
  • Standard Package: 1,000
