Same model may have multiple batches, images only for reference.

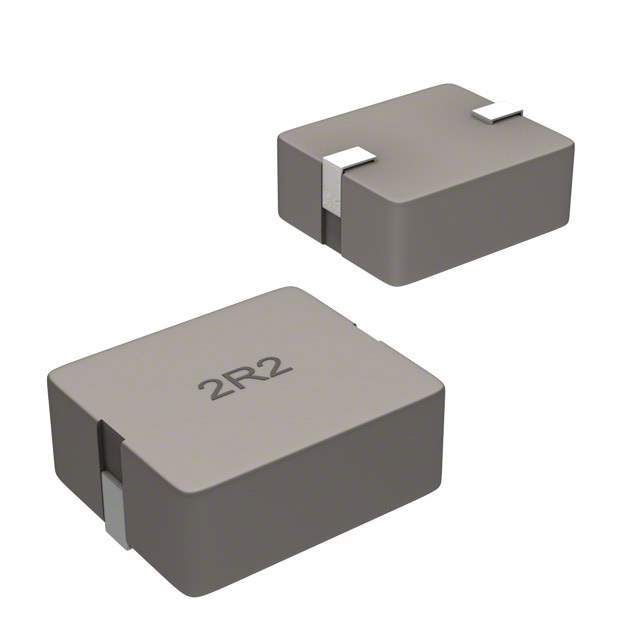

SRP7030-1R1FM Real Image
Same model may have multiple batches, images only for reference.

SRP7030-1R1FM

Part No SRP7030-1R1FM
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7030F
Package Tape & Reel
Product Status Obsolete
Type Molded
Material - Core Iron
Inductance 1.1 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 13A
Shielding Shielded
DC Resistance (DCR) 7mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.256" W (7.60mm x 6.50mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7030
Other Names SRP7030-1R1FMDKR,SRP7030-1R1FMTR,SRP70301R1FM,SRP7030-1R1FMCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273782-SRP7030-1R1FM
Ultra Librarian 3D Model Ultra Librarian SRP7030-1R1FM CAD Model

Description

The SRP7030F series from Bourns Inc. is a shielded fixed inductor designed for use in various applications such as filtering, power supplies, and DC/DC converters.

  • Type: Molded
  • Core Material: Iron
  • Inductance: 1.1 µH
  • Tolerance: ±20%
  • DC Resistance: 7mOhm max
  • Current Rating: 11 A
  • Standard Package: 1,000
  • Package/Case: Non-standard
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.299" L x 0.256" W (7.60mm x 6.50mm)
