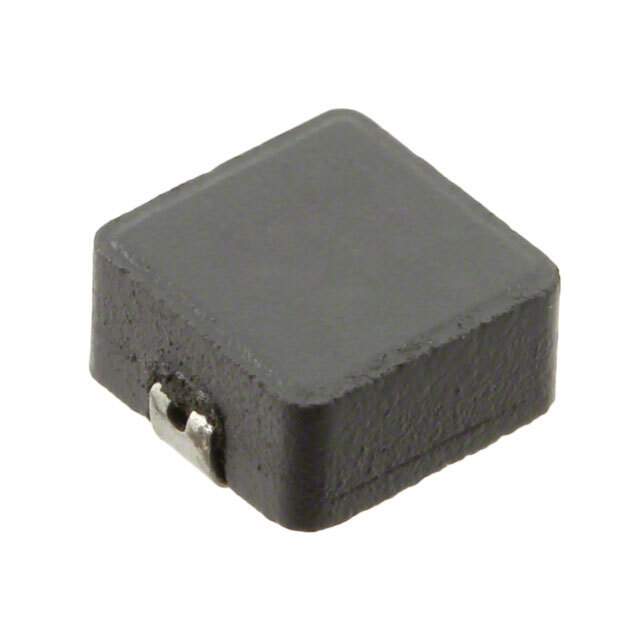

SRP5030T-100M Real Image
Same model may have multiple batches, images only for reference.

SRP5030T-100M

Part No SRP5030T-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5030T-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5030T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.75 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 128mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP5030T
Other Names SRP5030T-100MCT,SRP5030T-100MDKR,SRP5030T-100MTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273859-SRP5030T-100M
Ultra Librarian 3D Model Ultra Librarian SRP5030T-100M CAD Model

Description

The SRP5030T fixed inductor from Bourns Inc. is a drum core, wirewound type inductor that is shielded to prevent interference with other electronic components.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Core Material: Iron powder
  • DC Resistance (DCR): 128mOhm Max
  • Current Rating: 2.75 A
  • Operating Temperature: -40°C to 125°C
  • Package/Case: Non-standard, 0.224" L x 0.205" W (5.70mm x 5.20mm)
  • Packaging: Tape and reel
  • Standard Package: 2,000
