Same model may have multiple batches, images only for reference.

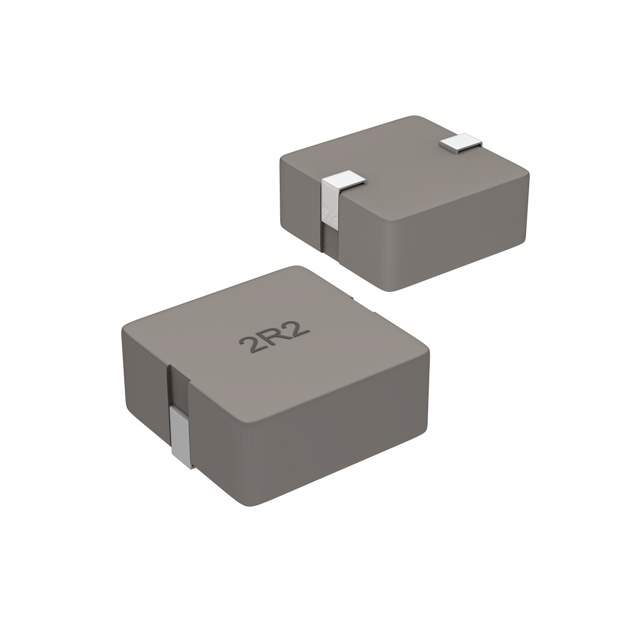

SRP4020-R36M Real Image
Same model may have multiple batches, images only for reference.

SRP4020-R36M

Part No SRP4020-R36M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020
Package Tape & Reel
Product Status Obsolete
Type Molded
Material - Core Iron
Inductance 360 nH
Tolerance ±20%
Current Rating (Amps) 9 A
Current - Saturation (Isat) 11A
Shielding Shielded
DC Resistance (DCR) 12mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.189" L x 0.157" W (4.80mm x 4.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020
Other Names SRP4020R36M,SRP4020-R36MTR,SRP4020-R36MCT,SRP4020-R36MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273923-SRP4020-R36M
Ultra Librarian 3D Model Ultra Librarian SRP4020-R36M CAD Model

Description

The Bourns Inc. SRP4020 is a high-quality molded fixed inductor that is designed to meet your needs.

  • Series: SRP4020
  • Package: tape and reel
  • Supply and Demand Status: limited
  • Inductance: 360 nH
  • Height Seated: 0.079 inches
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Tolerance: +/- 20 percent
  • Material-Core: iron
  • DC Resistance: 12mOhm Max
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.189 inches L x 0.157 inches W (4.80mm x 4.00mm)
  • ECCN: EAR99
