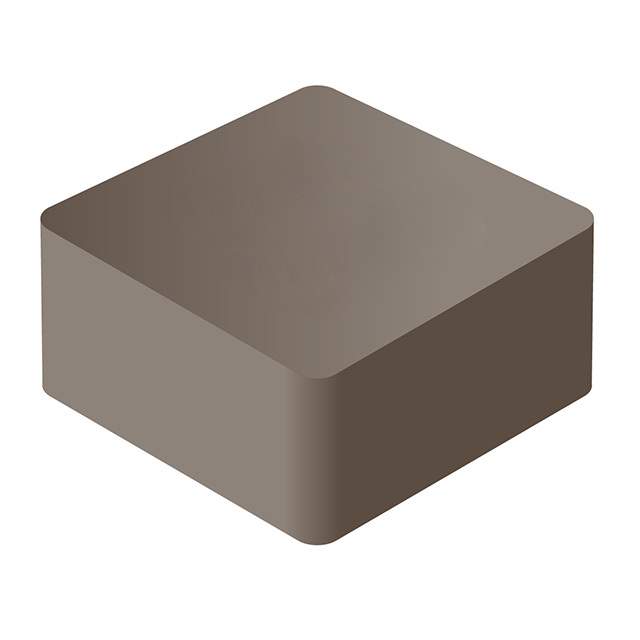

The SRP4018FA-R60M is a shielded power inductor manufactured by Bourns Inc. This series is designed for use in DC-DC converters and power supply applications requiring a compact size and good power handling capability. The "R60M" designation indicates an inductance value of 0.60 μH with a tolerance of ±20%.

Applications

• DC-DC converters
• Point-of-Load (POL) converters
• Power supplies for portable devices
• Buck and boost converters

Features

• Shielded construction for low EMI
• Compact size: 4.0 mm x 4.0 mm x 1.8 mm
• Inductance: 0.60 μH
• Tolerance: ±20%
• High saturation current
• Low DC resistance

Benefits

• Reduces electromagnetic interference (EMI) due to its shielded design.
• Provides efficient power conversion with its low DC resistance.
• Suited for compact electronic devices.
• Reliable performance across various operating conditions.

Additional Details

The SRP4018FA-R60M inductor is designed with a shielded construction to minimize electromagnetic radiation. It uses a ferrite core for stable inductance and is compliant with RoHS standards. It's designed for surface mount assembly.

Technical Specifications:

• Inductance: 0.60 μH ±20%
• DC Resistance (DCR): 0.006 Ohms (typical)
• Saturation Current (Isat): 6.5 A (current at which the inductance drops by 30%)
• RMS Current (Irms): 6.0 A (current that causes a 40 °C temperature rise from 25 °C ambient)
• Operating Temperature: -40 °C to +125 °C (including self-heating)
• Shielded: Yes
• Termination Finish: Matte Tin over Nickel
