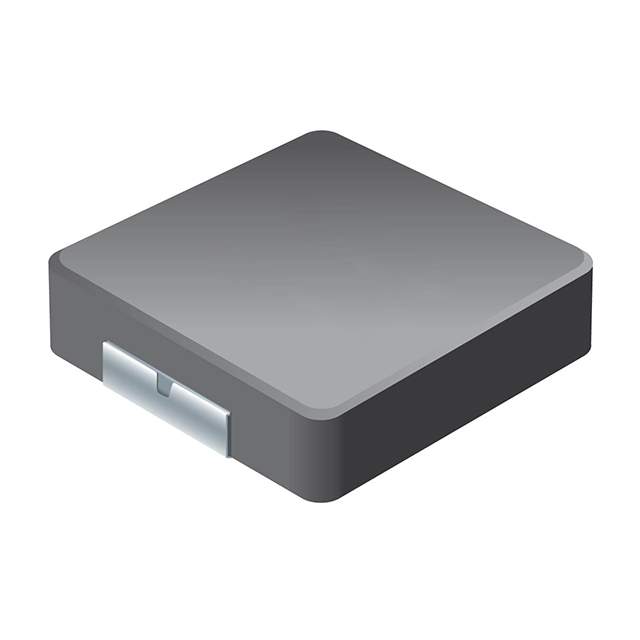

SRP3020TA-8R2M Real Image
Same model may have multiple batches, images only for reference.

SRP3020TA-8R2M

Part No SRP3020TA-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3020TA-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 1.9A
Shielding Shielded
DC Resistance (DCR) 390mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 22MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP3020TA
Other Names SRP3020TA-8R2MCT,SRP3020TA-8R2MTR,SRP3020TA-8R2MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273942-SRP3020TA-8R2M
Ultra Librarian 3D Model Ultra Librarian SRP3020TA-8R2M CAD Model

Description

The SRP3020TA-8R2M is a drum core, wirewound inductor designed for use in automotive and telecom applications.

  • Package: Shielded
  • Standard Package: 3000
  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • Core Material: carbonyl powder
  • Q @ Freq: 10 @ 100kHz
  • Frequency of Self-Resonant: 22MHz
  • DC Resistance (DCR): 390mOhm Max
  • Current Rating: 1.6 A
  • Dimensions: 0.138" L x 0.126" W (3.50mm x 3.20mm)
  • Manufacturer: Bourns Inc.
