Same model may have multiple batches, images only for reference.

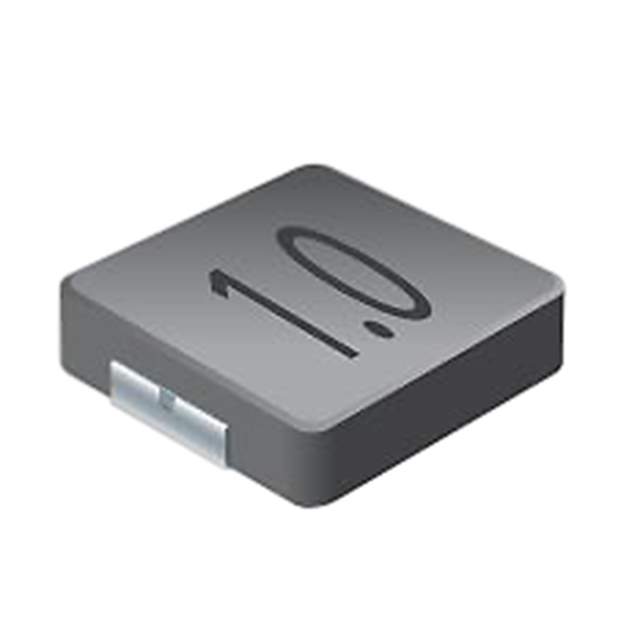

SRP3012TA-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP3012TA-5R6M

Part No SRP3012TA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3012TA-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 360mOhm Max
Frequency - Self Resonant 32MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP3012TA
Other Names SRP3012TA-5R6MTR,SRP3012TA-5R6MCT,SRP3012TA-5R6MDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273970-SRP3012TA-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP3012TA-5R6M CAD Model

Description

The Bourns Inc. SRP3012TA-5R6M fixed inductor is a shielded drum core wirewound inductor.

  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • Core Material: Carbonyl powder
  • DC Resistance (DCR): 360mOhm Max
  • Current Rating: 1.5A
  • Height: 0.047" (1.20mm)
  • Mounting Type: SMD (SMT)
  • Package/Case: 2-SMD
  • Temperature Range: -40°C ~ 150°C
  • Rating: AEC-Q200
  • Dimension: 0.138" L x 0.126" W (3.50mm x 3.20mm)
  • Base Product Number: SRP3012TA
