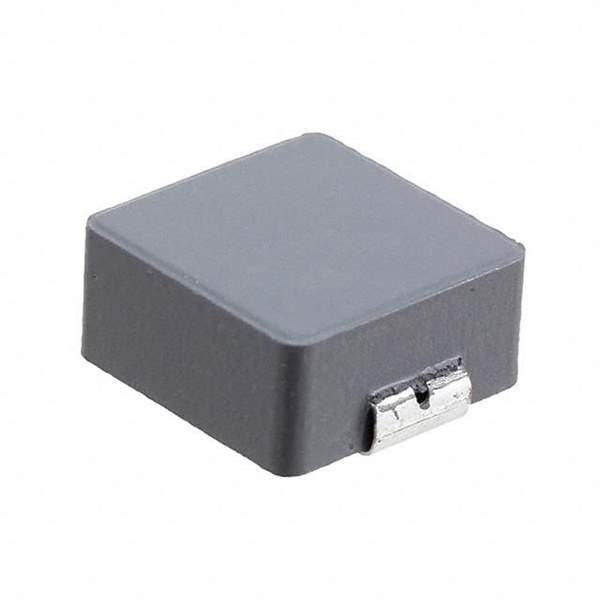

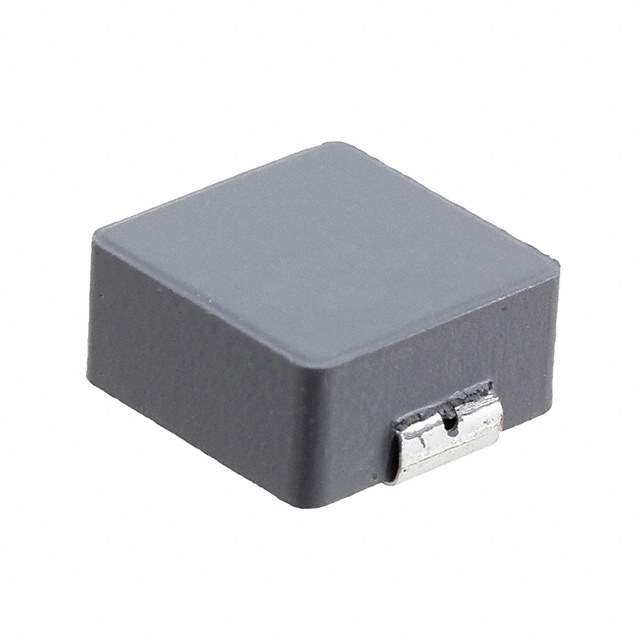

Same model may have multiple batches, images only for reference.

SRP1265A-R22M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1265A-R22M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1265A-R22M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1265A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	220 nH
Tolerance	±20%
Current Rating (Amps)	53 A
Current - Saturation (Isat)	112A
Shielding	Shielded
DC Resistance (DCR)	0.6mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	130MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.252" (6.40mm)
Base Product Number	SRP1265A
Other Names	SRP1265A-R22MDKR,SRP1265A-R22MCT,SRP1265A-R22MTR,2266-SRP1265A-R22M
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274044-SRP1265A-R22M
Ultra Librarian 3D Model	Ultra Librarian SRP1265A-R22M CAD Model

Alternative Products

Description

The SRP1265A Inductor from Bourns Inc. is a fixed inductor that is ideal for use in various applications.

Inductance: 220 nH
Tolerance: ±20%
DC Resistance: 0.6mOhm Max
Current Rating: 53 A
Mounting: SMD (SMT)
Shielded: Yes
Height: 0.252"
Dimension: 0.531" L x 0.492" W
Packaging: Tape & reel
Standard Package: 500
Temperature Range: -40°C to 150°C
Rated: AEC-Q200
MSL Level: 1 (unlimited)
REACH: REACH unaffected
HTSUS: 8504.50.4000
