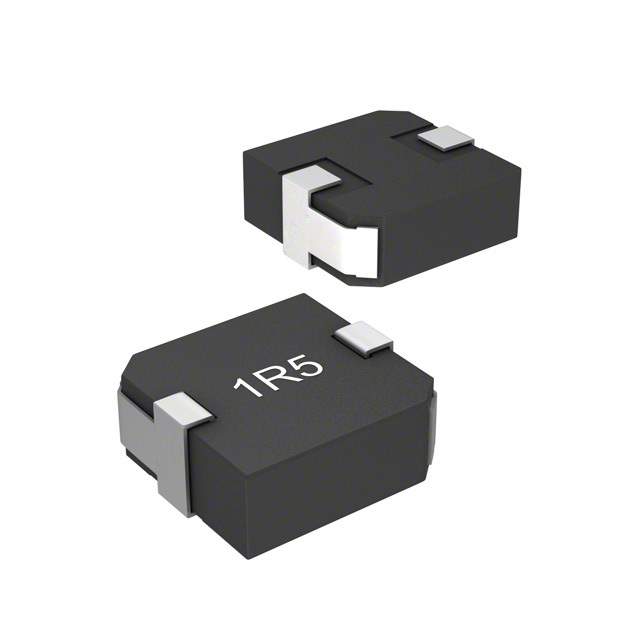

Same model may have multiple batches, images only for reference.

SRP1250-R82M

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1250-R82M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1250-R82M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1250
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	820 nH
Tolerance	±20%
Current Rating (Amps)	31 A
Current - Saturation (Isat)	53A
Shielding	Shielded
DC Resistance (DCR)	2.3mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max)	0.232" (5.90mm)
Base Product Number	SRP1250
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274048-SRP1250-R82M
Ultra Librarian 3D Model	Ultra Librarian SRP1250-R82M CAD Model

Alternative Products

Description

The SRP1250-R82M is a shielded fixed inductor from Bourns Inc. with an inductance of 820 nH and a tolerance of ±20%.

Core Material: Iron
Temperature Range: -55°C to 150°C
DC Resistance: 2.3mOhm Max
Current Rating: 31 A
Height: 0.232" (5.90mm)
Dimension: 0.547" L x 0.531" W (13.90mm x 13.50mm)
Package: Tape and Reel
Standard Package: 500 Units
Core Type: Drum Core, Wirewound
Applications: Power Supplies, DC-DC Converters, and EMI Filtering
