Same model may have multiple batches, images only for reference.

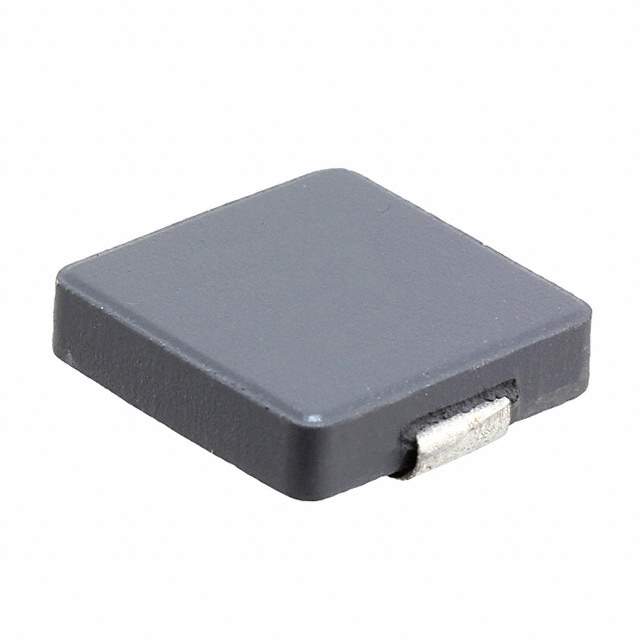

SRP1238A-R60M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-R60M

Part No SRP1238A-R60M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-R60M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 600 nH
Tolerance ±20%
Current Rating (Amps) 29 A
Current - Saturation (Isat) 51A
Shielding Shielded
DC Resistance (DCR) 2.2mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 53MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names SRP1238A-R60MCT,SRP1238A-R60MTR,2266-SRP1238A-R60M,SRP1238A-R60MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274082-SRP1238A-R60M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-R60M CAD Model

Description

The Bourns Inc. SRP1238A-R60M is a shielded fixed inductor that features a drum core, wirewound type.

  • Inductance: 600 nH
  • Tolerance: ±20%
  • Rated: AEC-Q200
  • Q @ Freq: 15 @ 100kHz
  • Frequency: Self-resonant @ 53MHz
  • Package: Tape and reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 2.2mOhm Max
  • Operating Temperature: -40°C to 150°C
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
The Bourns Inc. SRP1238A-R60M is a high-quality inductor that is ideal for use in various applications, including automotive electronics.
