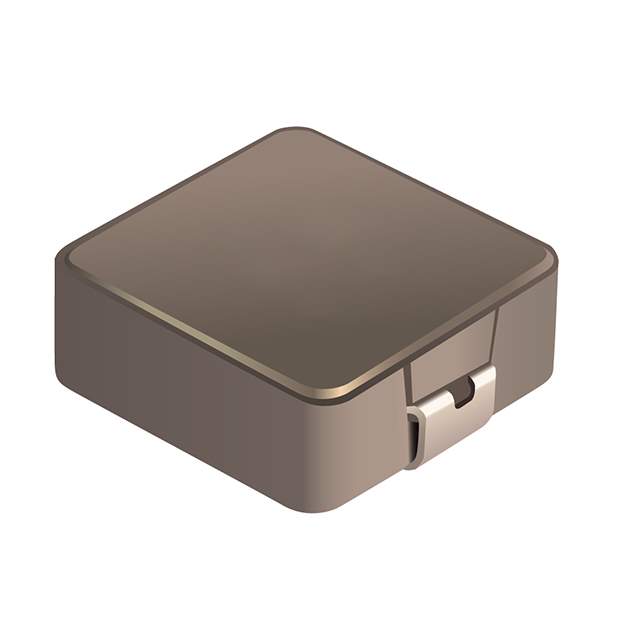

SRP1040VA-680M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-680M

Part No SRP1040VA-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1040VA-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 240mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 118-SRP1040VA-680MCT,118-SRP1040VA-680MTR,118-SRP1040VA-680MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274123-SRP1040VA-680M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-680M CAD Model

Description

The SRP1040VA-680M from Bourns Inc. is a fixed inductor that comes with a drum core and wirewound type.

  • Packaging: Tape and Reel
  • Shielding: Shielded
  • Tolerance: ±20%
  • Inductance: 68 μH
  • Current Rating: 3.5 A
  • DC Resistance (DCR): 240mOhm Max
  • Temperature Range: -55°C to 180°C
  • Rating: AEC-Q200
  • Material: Metal
  • Frequency of Self-Resonant: 4MHz
  • Size: 0.433" L x 0.394" W (11.00mm x 10.00mm)
