Same model may have multiple batches, images only for reference.

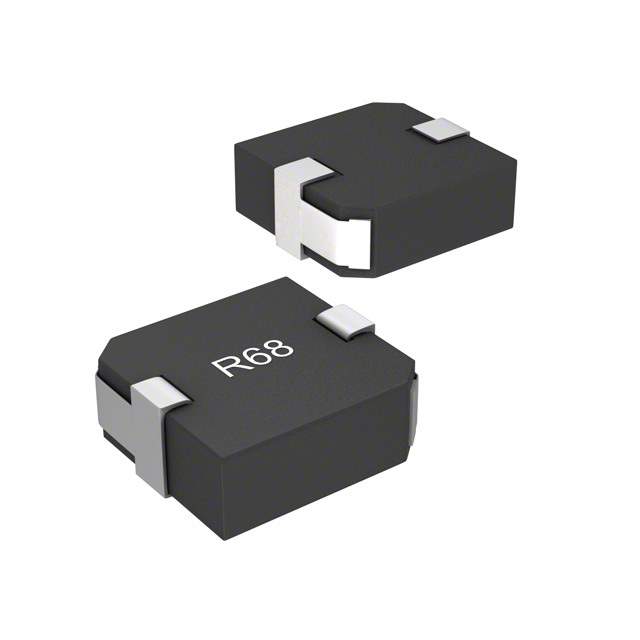

SRP1040-220M Real Image
Same model may have multiple batches, images only for reference.

SRP1040-220M

Part No SRP1040-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1040-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040
Package Tape & Reel (TR)
Product Status Obsolete
Material - Core Iron
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 62mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Max) 0.165" (4.20mm)
Base Product Number SRP1040
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274137-SRP1040-220M
Ultra Librarian 3D Model Ultra Librarian SRP1040-220M CAD Model

Description

The SRP1040 series inductor from Bourns Inc. is a fixed inductor with a shielding feature.

  • Inductance: 22 µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.165 inches
  • DC Resistance: 62 mOhm
  • Mounting Type: SMD (SMT)
  • Package/Case: Nonstandard
  • Operating Temperature Range: -55°C to 150°C
  • Material: Iron
  • Current Rating: 3.5 A
  • Dimension: 0.465 inches L x 0.413 inches W
  • Packaging: Tape and Reel
  • Standard Package: 900 units
