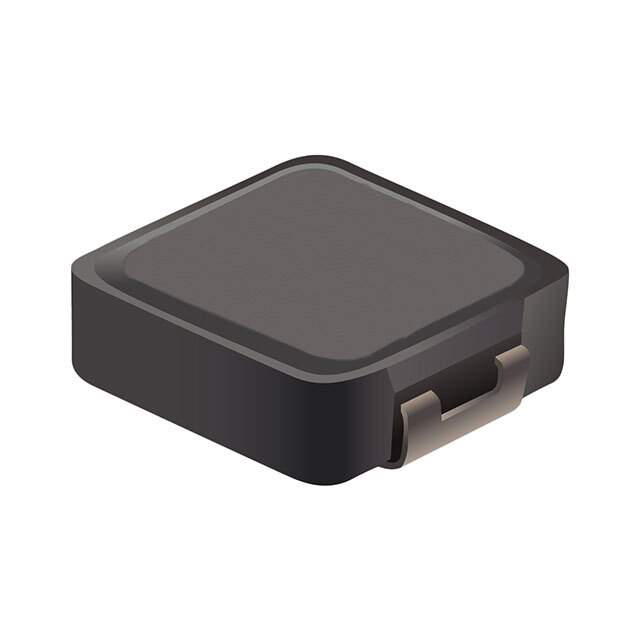

SRP1038C-100M Real Image
Same model may have multiple batches, images only for reference.

SRP1038C-100M

Part No SRP1038C-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1038C-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 8.5 A
Current - Saturation (Isat) 12.5A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names SRP1038C-100MCT,SRP1038C-100MTR,SRP1038C-100MDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274153-SRP1038C-100M
Ultra Librarian 3D Model Ultra Librarian SRP1038C-100M CAD Model

Description

The Bourns SRP1038C series inductor is a shielded drum core, wirewound type inductor with a metal core material.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Q @ Freq: 15 @ 100kHz
  • Frequency-Self Resonant: 10MHz
  • DC Resistance (DCR): 32mOhm Max
  • Current Rating: 8.5 A
  • Height-Seated (Max): 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Temperature Range: -40°C ~ 125°C
